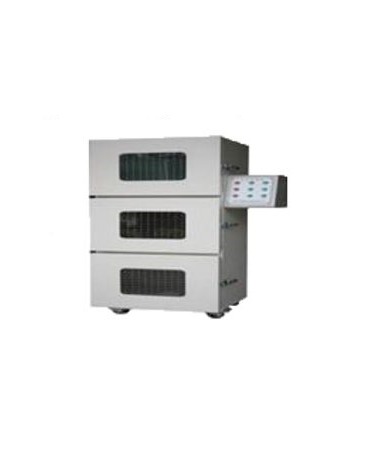

KINGPO KP-FB-100 ເຄື່ອງທົດສອບແບດເຕີຣີ

Features

The tester is used for testing overcharging and over-discharging of battery.

The tester is divided three layer with three test chamber.

Test result is non explosion, no fire, non air leaking, non electrolyte leakage for the qualified battery.

Dimensions: 500 × 500 × 500 mm (three layers)

Material

External box: A3 steel sheet with baking finish

Internal box: SUS#304 (stainless steel)

Door

Single door, or double opening door made of stainless steel

Observin Window: 5 mm tempered glass

Door Accessories

Reinforced hinge; explosion-proof handle locks

Teflon cloth stuck on 1/3 inside of the internal chamber to prevent corrosion

Two round holes at the back for cable connection, diameter φ50 mm

Separate air exhausting outlet for each test chamber

Exhaust fan for each chamber at the back, with exhaust tube connecting to reinforced exhaust fan outside the laboratory

Heat-insulation device for each layer to prevent mutual interference between layers
