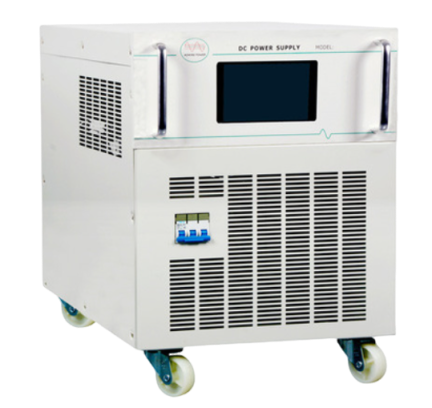

KINGPO APD2000 Switching Intelligent DC Power Source For Lab (220V, 50Hz)

Input voltage range: 1Ø2W+G 110V/220V±10% 220V±10% 3Ø4W+G 220V/380V±10%

Constant Voltage Mode

Line regulation ≦±0.2%±6 Count rated voltage load regulation ≦≤±0.2% of full scale

Ripple&Noise ≦10mVrms(≦600V)/20mVrms(≦1000V)

Constant current mode

Line regulation ≦±0.5%±3Count rated voltage load regulation ≦≤±0.3% of full scale

Voltage and Current Resolution: 0.2V 0.01A

Constant power mode

line regulation ≦±0.05%±6Count load regulation ≦≤±1% of full scale

Power Measurement Accuracy: ≦±1% ± 3Count at rated power Resolution:1W

Overvoltage setting range: 0% ~ 110% of rated voltage

Overcurrent setting range: 0% ~110% of rated current

CV transient response time: 10~200ms(at Resistance load 10%~90%)

Output climb rate: voltage 10 to 100% <300ms current 10 to 100% <500ms
