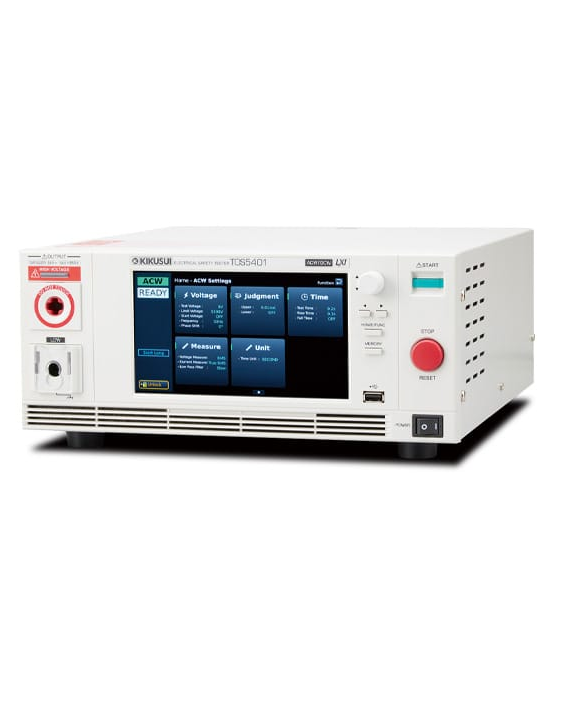

KIKUSUI TOS5401 ເຄື່ອງທົດສອບແຮງດັນທົນ AC/DC (Hipot) (5 kV / 100 mA (500 VA); 6 kV / 10 mA (50 W))
Withstanding Voltage Test
AC output section (ACW only)
Output range: 0.05kV to 5.00kV
Output setting accuracy: ±(2% of setting + 20V) (at no load)
Output setting range:
0.000kV to 5.500kV
0.000kV to 1.500kV (When Time Unit is set to Cycle and Phase Shift is set to 0°)
Output resolution: 1V
Max. rated output *1: 500VA (5kV/100mA)
Max. rated voltage: 5kV
Max. rated current: 100mA (when the output voltage is 0.5kV or higher)
Transformer rating: 500VA
Output voltage waveform*2:
Waveforms: Sine
Phase shift: The output voltage waveform can start with a phase shifted approx. 90° from the zero-crossing point.
Distortion: 3% or less. (when the output voltage is 0.5kV or higher and no load or a pure resistive load is connected)
Frequency: 50Hz/60Hz
Frequency setting accuracy: ±0.5% (excluding during voltage rise time)
Voltage regulation: ±10% or less (when changing from maximum rated load to no load)
Input voltage variation: ±0.3%(5kV at no load; power supply voltage: 90V to 250V)
Short-circuit current: 200 mA or more (output voltage 1.0 kV or higher)
Output method: PWM switching
DC output section (DCW only)
Output range: 0.05kV to 6.00kV
Output setting accuracy: ±(2% of setting + 20V) (at no load)
Output setting range: 0.000kV to 6.200kV
Output resolution: 1V
Max. rated output *1: 50W (5kV/10mA)
Max. rated voltage: 6kV
Max. rated current: 10mA
Ripple (TYP):
5kV no load: 50Vp-p
Max. rated load: 100Vp-p
Voltage regulation: 3% or less (when changing from maximum rated load to no load)
Short-circuit current (TYP): 40mA (when generating 6 kV output)
Discharge function:
Forced discharge after test completion (discharge resistance: 125kΩ)*2 Maximum capacitance: 1μF*3
Discharge time: 0.0 to 100.0 seconds
Discharge function during interlock activation: ON/OFF
Measurement function
Measurement range: AC/DC: 0.000kV to 6.500kV
Display: □. □□□ kV
Accuracy:
V < 500V: ±(1.5% of reading + 10V)
V ≥ 500V: ± 1.5% of reading
Response*1:
ACW: True rms/ Mean-value response rms display can be switched.
DCW and IR: Mean-value
Hold feature: Holds the measured voltage value at the end of the test while the PASS/FAIL judgment result is displayed.
Digital ammeter
Measurement range:
AC: 0.00mA to 110mA
DC: 0.00mA to 11mA
Display (i = measured current):
i < 10uA: □. □μA
10uA ≦ i < 100uA: □□. □μA
100uA ≦ i < 1mA: □□□. □μA
1mA ≦ i < 10mA: □. □□□mA
10mA ≦ i < 100mA: □□. □□mA
100mA ≦ i: □□□. □mA
Accuracy*1 (i = measured current)
1.00mA ≦ i: ±(1.5% of reading)
i < 1.00mA: ±(1.5% of reading + 20 μA)
Response*2: ACW: True rms/ Mean-value response rms display can be switched.
Hold feature: The current measurement after a test is finished is held while the pass judgment is displayed.
