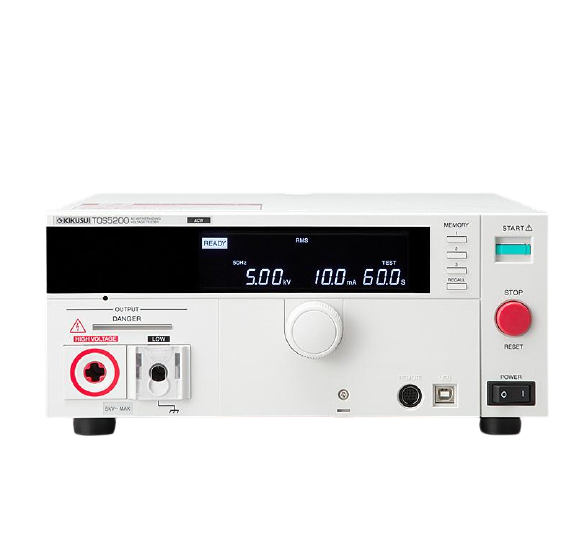

KIKUSUI TOS5200 AC Hipot Tester (0.05 kV ~ 5.00 kV)
Withstanding voltage tester
Output range: 0.05 kV to 5.00 kV; ± (2 % of set + 20 V) when no load is connected
Operating range: 0.00 kV to 5.50 kV; 10V
Max. rated output: 500 VA (5 kV/100 mA)
Max. rated voltage: 5 kV
Max. rated current: 100 mA (when the output voltage is 0.5 kV or greater)
Transformer rating: 500 VA
Output voltage waveform: Sine
Measurement: V, A
Other functions: Test mode, Protection (Interlock, Power Supply, Volt Error, OLP, OHP, ORP, Remote, USB)
Interfaces: USB, RS232C, REMOTE, SIGNAL I/O
Dimensions: (mm(inches))(maximum) 320 (12.6") (330(12.99")) W × 132(5.2") (150(5.91")) H × 350(13.78") (420(16.54")) D
Weight: Approx. 14 kg (30.9 lbs)
Accessories:
Power cord : 1pc.
High test lead (TL31-TOS) :1set (1 red wire and 1 black wire, each with alligator clips) 1.5 m
D-sub 25-pin plug : 1set ; assembly type
High-voltage warning sticker : 1pc.
Setup Guide
Quick Reference(1 each for English and Japanese)
Safety informaion
CD-R
