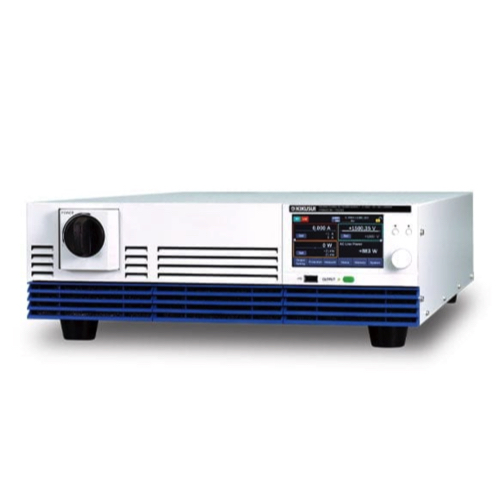

KIKUSUI PXB20K-1000 ແຫຼ່ງຈ່າຍໄຟ DC ຄວາມຈຸສູງສອງທິດທາງ (20kW; 0V ~ 1000V; -60A ~ +60A)
Output Rating
Rated Power: ±20000 W
Rated Voltage (Source): 0 V to 1000 V
Operating Voltage (Sink): 20 V to 1000 V
Rated Current: ±60 A
Output Voltage
Maximum Settable Voltage: 1050 V
Setting Accuracy: ±(0.2 % of setting + 0.1 % of rating)
Setting Resolution: 0.1 V
Power Fluctuation: ±200 mV
Load Variation: ±500 mV
Remote Sensing
Maximum Compensation Voltage (Reciprocating): 10 % of rating
Internal Resistance Setting Upper Limit: 21000 mΩ
Internal resistance setting resolution: 2 mΩ
Response Switching: FAST, SLOW
Slew Rate Switching (TYP):
250 V/ms or more
250 V/ms
25 V/ms
2.5 V/ms
0.25 V/ms
Source Only
Transient Response: 10 ms or less
Ripple Noise
p-p: 1500 mV
rms: 500 mV
Rise Time
Full Load: 10 ms
No Load: 10 ms
Fall Time
Full Load: 10 ms
No Load: 10 ms
Output Current
Settable Maximum Source Current: +63 A
Settable Maximum Sink Current: -63 A
Seamless Setting Current Range: -63 A to +63 A
Setting Accuracy: ±(0.75 % of rating)
Setting Resolution: 0.005 A
Power Fluctuation: ±120 mA
Load Variation: ±120 mA
Short-Circuit Characteristics
Rise Time (TYP): 5 ms
Fall Time (TYP): 5 ms
Charge / Discharge
Switching Time (TYP): 10 ms
Response Switching
Mode: FAST, SLOW
Slew Rate Switching (TYP)
Maximum: 15 A/ms or more
15 A/ms
1.5 A/ms
0.15 A/ms
0.015 A/ms
