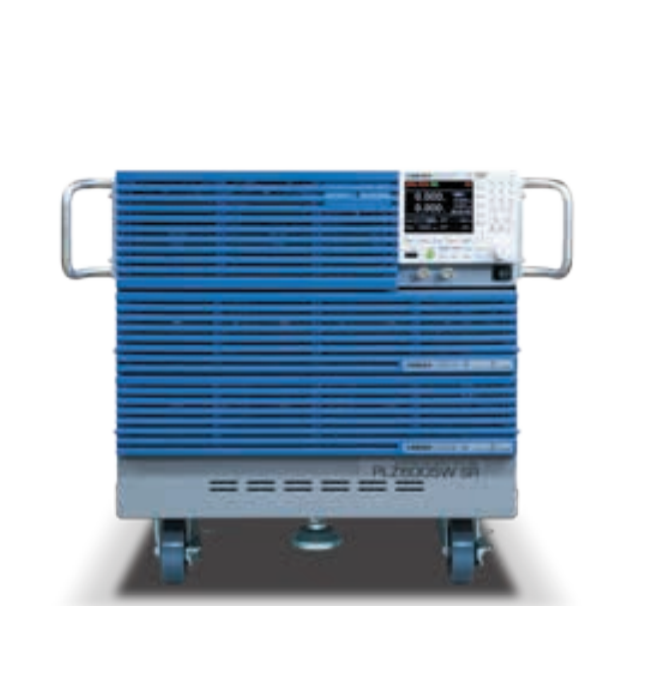

KIKUSUI PLZ6005W SR Multifunctional DC Electronic Load (Smart rack, 6 kW)
Rating:
Operating voltage (V): 1 to 150
Current (A): 1200
Power (W): 6000
Constant current mode (CC)
Operating range:
H range (A): 0 to 1260
M range (A): 0 to 126
L range (A): 0 to 12.6
Ripple: 120 mArms
Constant voltage mode (CV)
Operating range:
H range (V): 0 to 157.50
L range (V): 0 to 15.750
Resolution:
H range (mV): 5
L range (mV): 0.5
Constant resistance mode (CR)
Operating range:
H range (S): 1260 to 0
M range (S): 126 to 0
L range (S): 12.6 to 0
Constant power mode (CP)
H range (W): 0 to 6300
M range (W): 0 to 630
L range (W): 0 to 63.0
Interfaces: GPIB (Option), RS232C, USB, LAN
Weight (kg): ≈ 82
Power consumption (VA): ≈ 275
