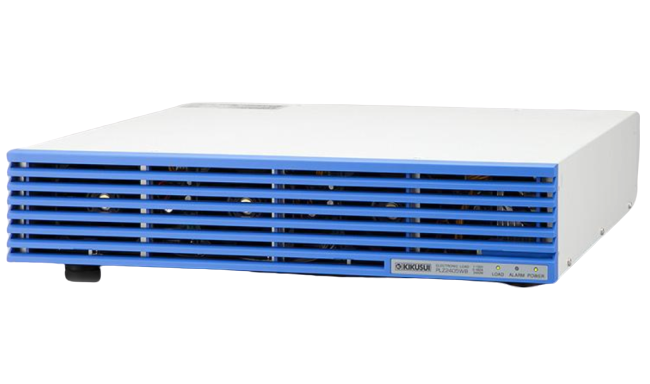

KIKUSUI PLZ2405WB Multifunctional DC Electronic Load (Booster, 480A/2400W)
Operating voltage: 1 Vdc to 150 Vdc
Current 480 A
Power 2400 W
Current range:
H range: 0 A to 480 A
M range: 0 A to 48 A
L range: 0 A to 4.8 A
Setting accuracy
CC mode:
H range: ± (0.4% of set + 0.8% of range)
M range: ± (0.4% of set + 0.8% of range)
L range: ± (0.4% of set + 5% of range)
CR mode
H range: ± (0.5% of set + 1.5% of range)
M range: ± (0.5% of set + 1.5% of range)
L range: ± (0.5% of set + 5% of range)
CV mode: H,M,L range: ± (0.2% of set + 0.2% of range)
CP mode:
H range: ± (2% of range + 0.4% current range × Vin*1 )
M range: ± (2% of range + 0.4% current range × Vin*1 )
L range: ± (2% of range + 2.5% current range × Vin*1 )
Measurement accuracy
Voltmeter accuracy: ± (0.1% of reading + 0.1% of range)
Ammeter accuracy:
H range: ± (0.4% of reading + 0.8% of range)
M range: ± (0.4% of reading + 0.8% of range)
L range: ± (0.4% of reading + 5% of range)
Weight: Approx. 15 kg (33.07 lb)
Accessories: Power cord, Load input terminal cover, Parallel operation signal cable kit (PC01-PLZ-5W),
Load input terminal screw set (2 sets), Screws for the load input terminal cover (2 pcs.), Operation manual
