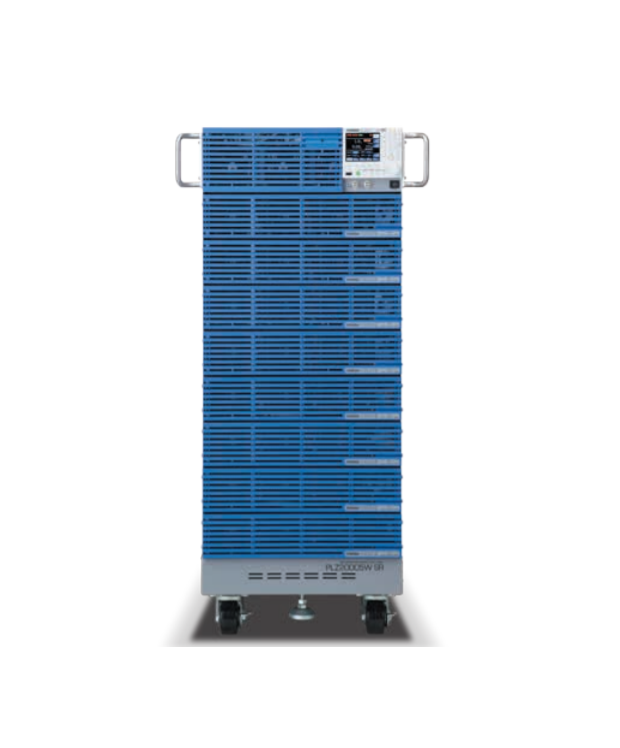

KIKUSUI PLZ20005W SR Multifunctional DC Electronic Load (Smart rack, 20.4 kW)
Rating:
Operating voltage (V): 1 to 150
Current (A): 2160
Power (W): 20400
Constant current mode (CC)
Operating range:
H range (A): 0 to 4284
M range (A): 0 to 428.4
L range (A): 0 to 42.84
Ripple: 408 mArms
Constant voltage mode (CV)
Operating range:
H range (V): 0 to 157.50
L range (V): 0 to 15.750
Resolution:
H range (mV): 5
L range (mV): 0.5
Constant resistance mode (CR)
Operating range:
H range (S): 4284 to 0
M range (S): 428.4 to 0
L range (S): 42.84 to 0
Constant power mode (CP)
H range (W): 0 to 21420
M range (W): 0 to 2142
L range (W): 0 to 214.2
Interfaces: GPIB (Option), RS232C, USB, LAN
Weight (kg): ≈ 200
Power consumption (VA): ≈ 855
