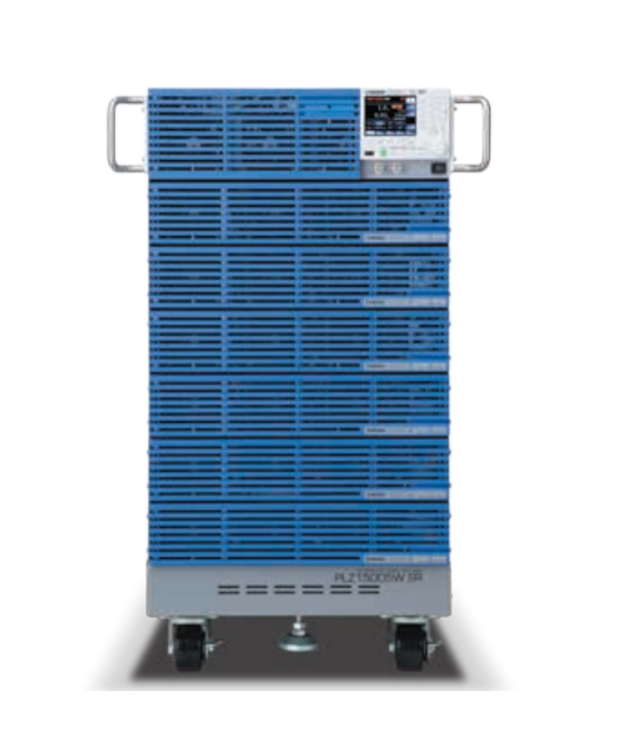

KIKUSUI PLZ15005W SR Multifunctional DC Electronic Load (Smart rack, 15.6 kW)
Rating:
Operating voltage (V): 1 to 150
Current (A): 2160
Power (W): 15600
Constant current mode (CC)
Operating range:
H range (A): 0 to 3276
M range (A): 0 to 327.6
L range (A): 0 to 32.76
Ripple: 312 mArms
Constant voltage mode (CV)
Operating range:
H range (V): 0 to 157.50
L range (V): 0 to 15.750
Resolution:
H range (mV): 5
L range (mV): 0.5
Constant resistance mode (CR)
Operating range:
H range (S): 3276 to 0
M range (S): 327.6 to 0
L range (S): 32.76 to 0
Constant power mode (CP)
H range (W): 0 to 16380
M range (W): 0 to 1638
L range (W): 0 to 163.8
Interfaces: GPIB (Option), RS232C, USB, LAN
Weight (kg): ≈ 160
Power consumption (VA): ≈ 655
