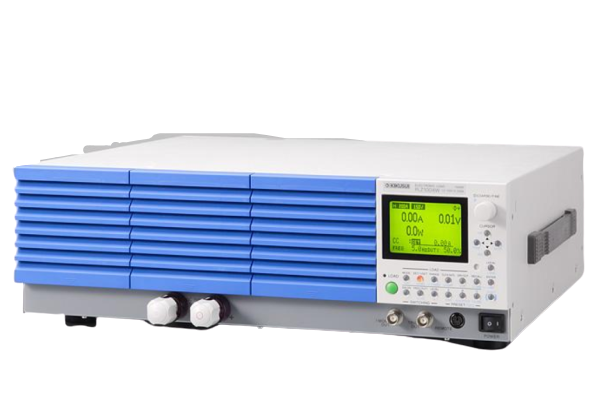

KIKUSUI PLZ1004W Multifunctional DC Electronic Load (200A/ 1000W)
Operating voltage (DC): 1.5 V to 150 V
Current: 200 A
Power: 1000 W
- CC mode
Setting range:
Range H: 0 A to 210 A
Range M: 0 A to 21 A
Range L: 0 A to 2.1 A
Setting accuracy:
Range H,M: ±(0.2 % of set + 0.1 % of f.s) + Vin/ 500 kΩ
Range L: ±(0.2 % of set + 0.1 % of f.s)
Ripple: 3 mArms
- CR mode
Setting range
H: 139.9968 S to 0 S
M: 13.99968 S to 0 S
L: 1.399968 S to 0 S
Setting accuracy:
H, M range: ±(0.5 % of set + 0.5 % of f.s) + Vin/ 500 kΩ
L range: ±(0.5 % of set + 0.5 % of f.s)
- CV mode
Setting range:
H: 0 V to 157.5 V
L: 0 V to 15.75 V
Setting accuracy: ±(0.1 % of set + 0.1 % of f.s)
- CP mode
Setting range:
Range H: 0 W to 1050 W
Range M: 0 W to 105 W
Range L: 0 W to 10.5 W
Setting accuracy: ±(0.6 % of set + 1.4 % of f.s)
Measurement function: V, A, P
Pulse function: Frequency setting range 1 Hz to 20 kHz
Other functions: Sequence, Remote sensing, Protection function (OVP, OCP, OPP, UVP)
Communication: GPIB, RS232C, USB
Accessories:
Power cord × 1 pc. (with plug, Length: approx. 2.4 m),
Load input terminal cover × 1 piece (2 lock plates provided),
Set of screws for the load input terminal × 2 sets (bolts, nuts, and spring washers),
Setup guide × 1 piece(Japanese, English),
Quick Reference(Japanese:1 piece, English:1 piece), CD-ROM × 1 piece
