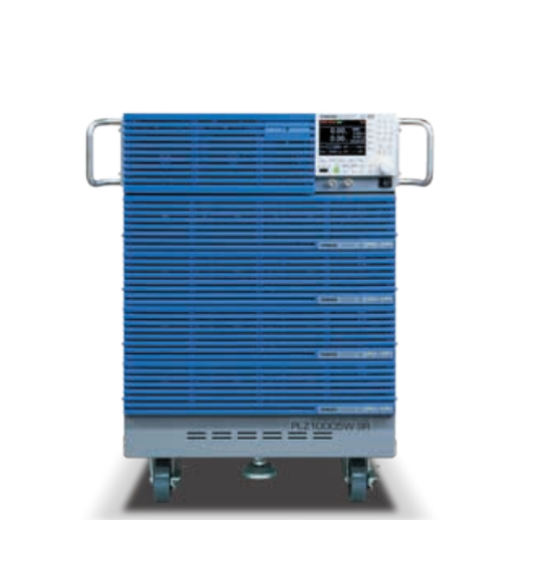

KIKUSUI PLZ10005W SR Multifunctional DC Electronic Load (Smart rack, 10.8 kW)
Rating:
Operating voltage (V): 1 to 150
Current (A): 2160
Power (W): 10800
Constant current mode (CC)
Operating range:
H range (A): 0 to 2268
M range (A): 0 to 226.8
L range (A): 0 to 22.68
Ripple: 216 mArms
Constant voltage mode (CV)
Operating range:
H range (V): 0 to 157.50
L range (V): 0 to 15.750
Resolution:
H range (mV): 5
L range (mV): 0.5
Constant resistance mode (CR)
Operating range:
H range (S): 2268 to 0
M range (S): 226.8 to 0
L range (S): 22.68 to 0
Constant power mode (CP)
H range (W): 0 to 11340
M range (W): 0 to 1134
L range (W): 0 to 113.4
Interfaces: GPIB (Option), RS232C, USB, LAN
Weight (kg): ≈ 120
Power consumption (VA): ≈ 465
