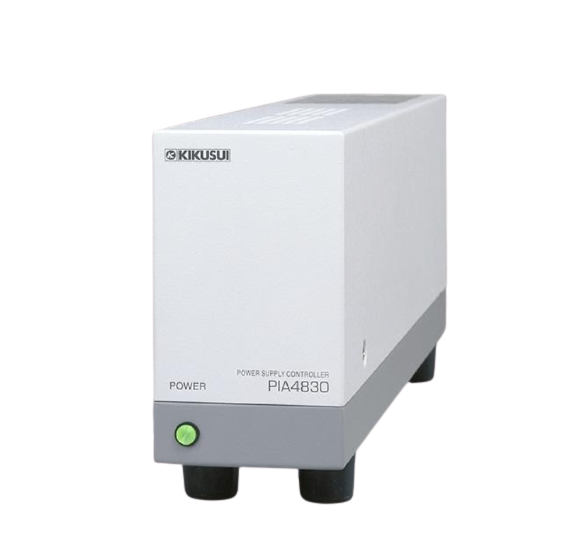

KIKUSUI PIA4830 Power Supply Controller ຮອງຮັບຫຼາຍຊ່ອງ (17 VA)
- Input
Line voltage range: 85 VAC~ 250 VAC
Frequency: 48 Hz ~ 62 Hz
Power consumption: Up to 17 VA
Operating ambient temperature/Humid range: 0~40 ˚C, 10%~90% rh (no dew condension)
Storage ambient temperature/Humid range: -20~70 ˚C, 10%~90% rh (no dew condension)
- Insulation resistance:
Input - chassis: 500 VDC, 30 MΩ or more
TP-BUS - chassis: 1000 VDC, 30 MΩ or more
CH terminals - chassis: 500 VDC, 30 MΩ or more
- Withstand voltage:
Input - chassis: 1500 VAC, 1 minute
Input - TP-BUS: 1500 VAC, 1 minute
TP-BUS - chassis: 600 VAC, 1 minute
CH terminals - chassis: 600 VAC, 1 minute
Input - CH terminals: 1500 VAC, 1 minute
Weight: Approx. 2 kg (11 lb)
Dimensions: 70.4W X 123.4 H X 350 (365) D mm
Accessories:
- AC power cable: 1
- PIA4800 Utilities CD: 1
- TP-BUS connector: 1
- TP-BUS core: 1
- Operation Manual for controller: 1
