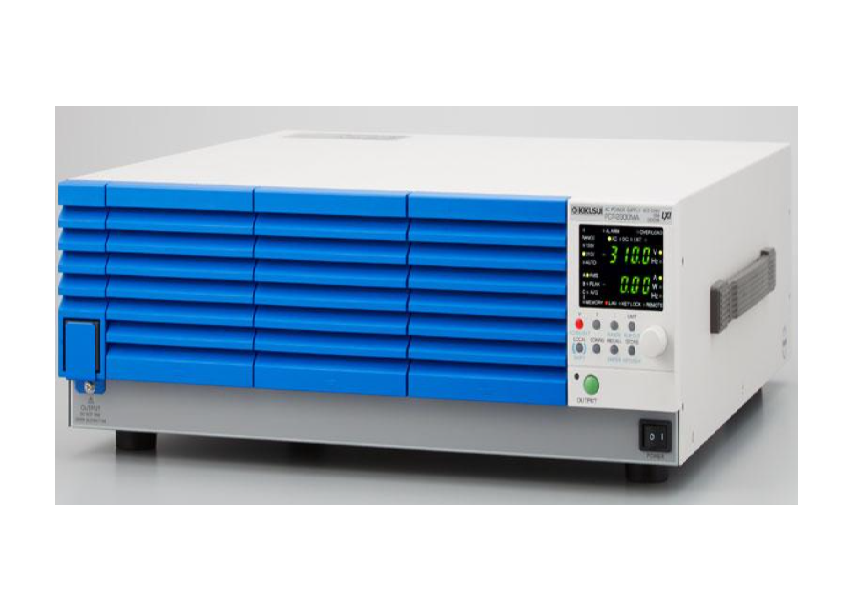

KIKUSUI PCR2000MA ການສະຫນອງພະລັງງານ AC ຫນາແຫນ້ນ (20A/10A, 2 kVA)
- Input:
Nominal input voltage: 100 Vac to 120 Vac/200 Vac to 240 Vac, 50 Hz/60 Hz, single phase
Frequency: 47Hz to 63Hz
- AC mode output ratings (AC rms)
Voltage: 0 V to 155 V/0 V to 310 V
Voltage setting range: 0 V to 157.5 V/0 V to 315.0 V
Voltage setting accuracy: ±(1 % of set + 0.6 V/1.2 V)
Max. current: 20 A/10 A
Power capacity: 2 kVA
Frequency setting range: 40.0 Hz to 500.0 Hz
DC mode output ratings:
Voltage: -219 V to +219 V/-438 V to +438 V
Voltage setting range: -222.5 V to +222.5V/-445.0 V to +445.0 V
Voltage setting accuracy: ±(1 % of set + 0.6 V/1.2 V)
Max. current: 16 A/8 A
Power capacity: 1600 W
- Output Voltage Stability:
Line regulation: ≤ ±0.15 %
Load regulation: 40 Hz to 100 Hz, DC : ≤ ±0.15V/±0.3V
Other than above : ≤ ±0.5 V/±1 V
Ripple noise: 0.8 Vrms/1.6 Vrms
- Interfaces: USB , LAN , GPIB (Option)
- Measurement: A, V, W
- Accessories: Power cord, Core, Cable tie, Quick Reference, Safety information, CD-ROM
