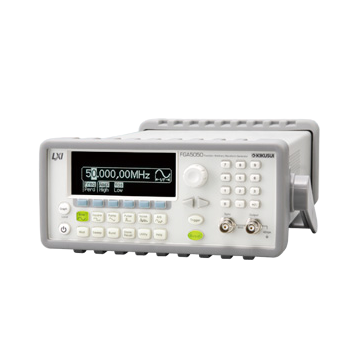

KIKUSUI FGA5050GC Function Generator (1μHz ~ 50MHz)
Wide band frequency
- Sine waveform : 1μHz to 50MHz
- Square waveform : 1μHz to 25MHz
Sine wave form, Square waveform, Ramp waveform, Triangle waveform, Pulse waveform, Noise waveform, DC, Arbitrary waveform output
Waveform: Editor Application Software "WAVEPATT" is included as standard
Various modulation types: AM, FM, PM, FSK, PWM, Frequency sweep, Burst, External Modulation Input
16 bits / up to 50MHz pattern out
14 bits / 256k-point, 125MSs/s
10MHz clock in and out
Trigger Input and Trigger output (TTL compatible)
Interface : LAN / USB / GPIB standard
Accessories:
- Power cord
- Pattern generator cable
- USB cable
- CD-R
- Packing list, safety precautions
- China RoHS disclosure report
