KEYSIGHT U3851A ການອອກແບບວົງຈອນ RF Microwave, ການຈຳລອງແລະການວັດແທກຫຼັກສູດ, 5G NR n3
Microwave Concepts & Components
• RF fundamentals and concepts
• Passive and active devices design principles
• Filters, amplifiers, mixers, oscillators, and more
• Measurements and RF parameters
• Software based design and simulation in ADS
Courseware Contents
• Training kit
- RF education hardware kit
- Kit controller
- RF adapters and splitter
- Cables (RF, power, LAN, BNC)
- Power adapter (Not all countries, please refer to training kit section for more detail)
- Carry case
• Editable lab sheets and model answers
- Problem-based assignments
- Covers 50 hours of lab sessions

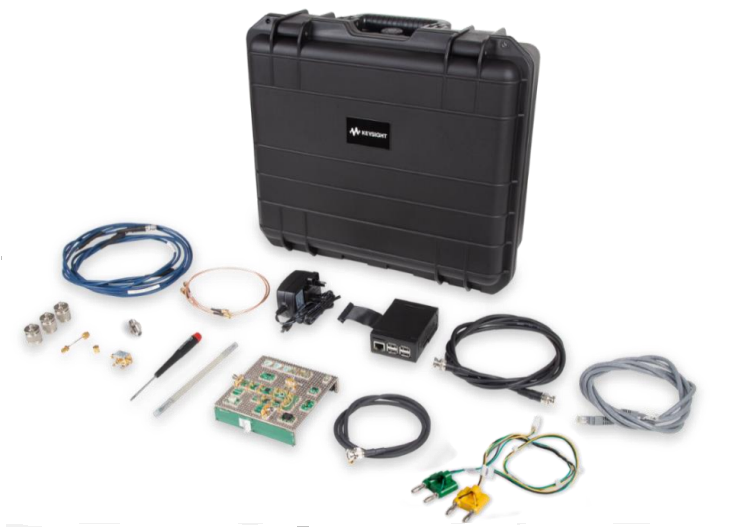

Training Kit includes:
• Prototype plate with accessories
• Controller using Raspberry Pi 3 model B and Schroff casing
• Power adaptor 13 W and power cable for Raspberry Pi 3*
• Hard carrying case to keep the U3851A training kit and accessories.
Lab Sheets
1. Transmission Lines: Design, simulate and measure microstrip and coplanar waveguide transmission lines
2. Filter: Design RF and IF filters for a 5G Band 3 downlink; measure the performance and compare to the data sheet or design.
3. Low Noise Amplifiers: Simulate and evaluate two LNAs, and select one for the front end
4. Driver and Power Amplifiers: 5G PA (or wideband DA/PA) MMIC with external tuning circuit.
5. Oscillator and Synthesizers: Synthesizer design trade offs
6. Mixers: Single diode, single balanced, double balanced, and triple balanced mixers
7. 5G Receiver Design, Simulation and Measurement: Simplified 5G receiver model
