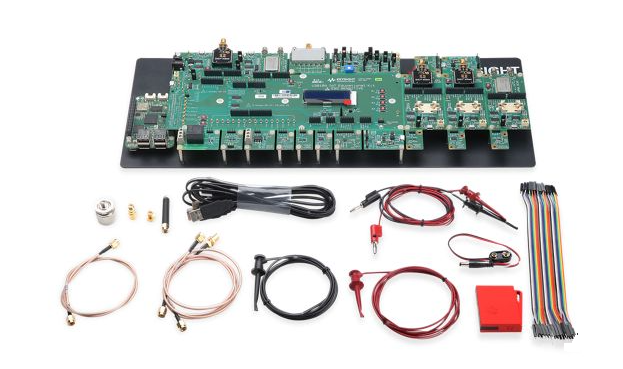

KEYSIGHT U3813A ພື້ນຖານການອອກແບບລະບົບ IoT ແລະການກວດສອບຄວາມຖືກຕ້ອງ, ດ້ວຍຊຸດຝຶກອົບຮົມ ແລະແຜ່ນຫ້ອງທົດລອງ
•University subjects: IoT systems, Embedded System
• Years of study: Second to final year undergraduates
• Prerequisites(s): Basic programming
Recommended instruments
- 34465A Digital Multimeter - Digital multimeter with data logging, digitizing and auto calibration
- DSOX1204G Oscilloscope - 70/100/200 MHz, 4 Analog Channels, with a built-in Waveform Generator
Lab Sheets
1. Setup the U3810A and IoT System Overview
2. Introduction to U3810 Peripherals, GPIO, PWM, SS Relay, LCD, Storage
3. Interfacing to Analog and Digital Devices, I2C, SPI, Relays, Sensors and ADCs
4. Zigbee Communications
5. Bluetooth® Low Energy
6. IoT Sensor Node Power
7. Network Security and Cloud
A1. Cloud-based IT Application
A2. Industry 4.0 Automation
Recommended Keysight Instrument/Software for Lab Setup
- 34465A Digital Multimeter - Digital multimeter with data logging, digitizing and auto calibration
- DSOX1204G Oscilloscope - 70/100/200 MHz, 4 Analog Channels, with a built-in Waveform Generator
