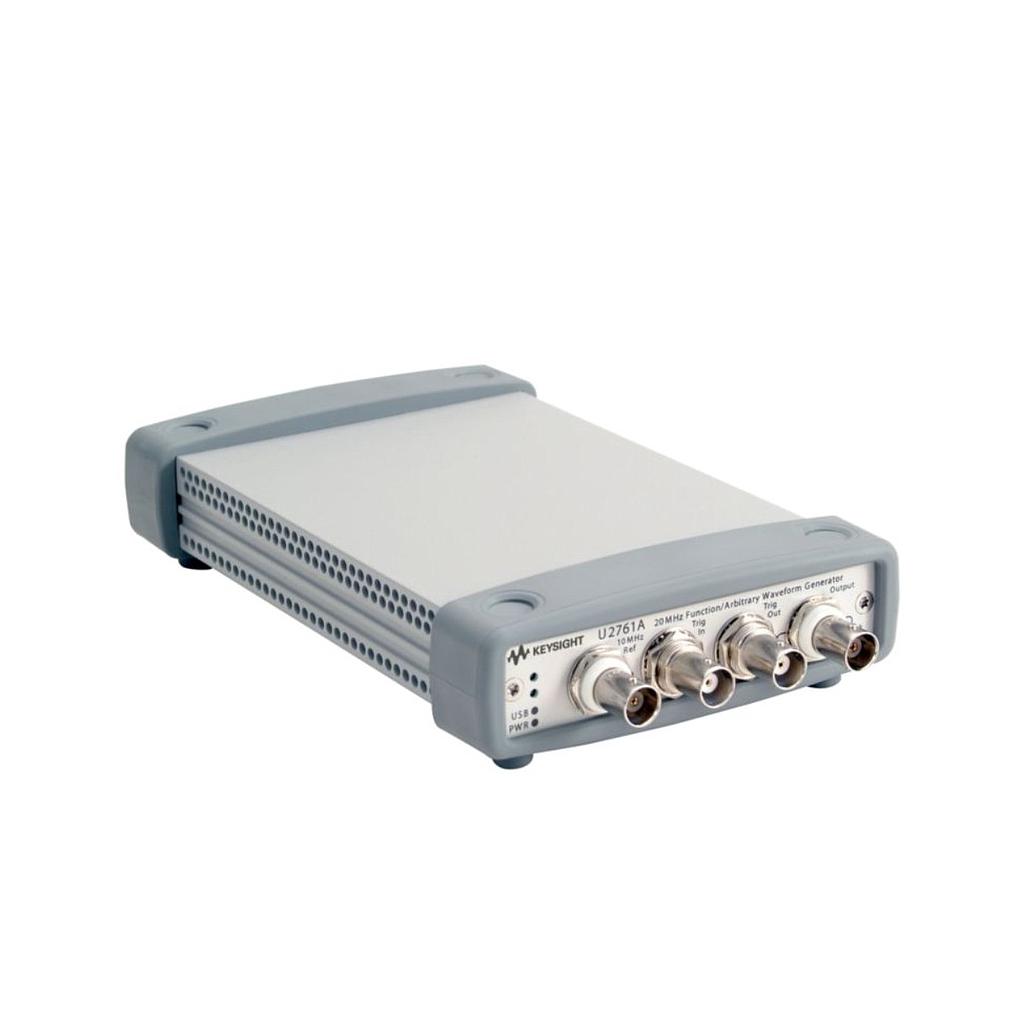

KEYSIGHT U2761A USB Modular Function Generator (20 MHz, 14-bit, 50 MSa/s, 64 Kpoint)
Maximum Frequency Range Sinewave: 20MHz
Minimum Frequency Range Sinewave: 1µHz
Maximum Frequency Range Square Pulse and Arbitrary Waveform: 5 MHz, 20 MHz, 200 kHz
Minimum Frequency Range Square Pulse and Arbitrary Waveform: 1 μHz, 500 μHz
Maximum Frequency Range Triangle/Saw: 200kHz
Minimum Frequency Range Triangle/Saw: 1µHz
Maximum Operating Temperature: +50°C
Plug Type: Type G - British 3-pin
Length: 175mm
Input Impedance: 10 kΩ
Height: 25mm
Minimum Operating Temperature: 0°C
Frequency Range Square Pulse and Arbitrary Waveform: 1 μHz → 20 MHz, 1 μHz → 200 kHz, 500 μHz → 5 MHz
Output Amplitude: 632mV Pk-Pk
Width: 105mm
Interface Type: USB
Dimensions: 175 x 105 x 25mm
Weight: 476g
Output Impedance: 50Ω
