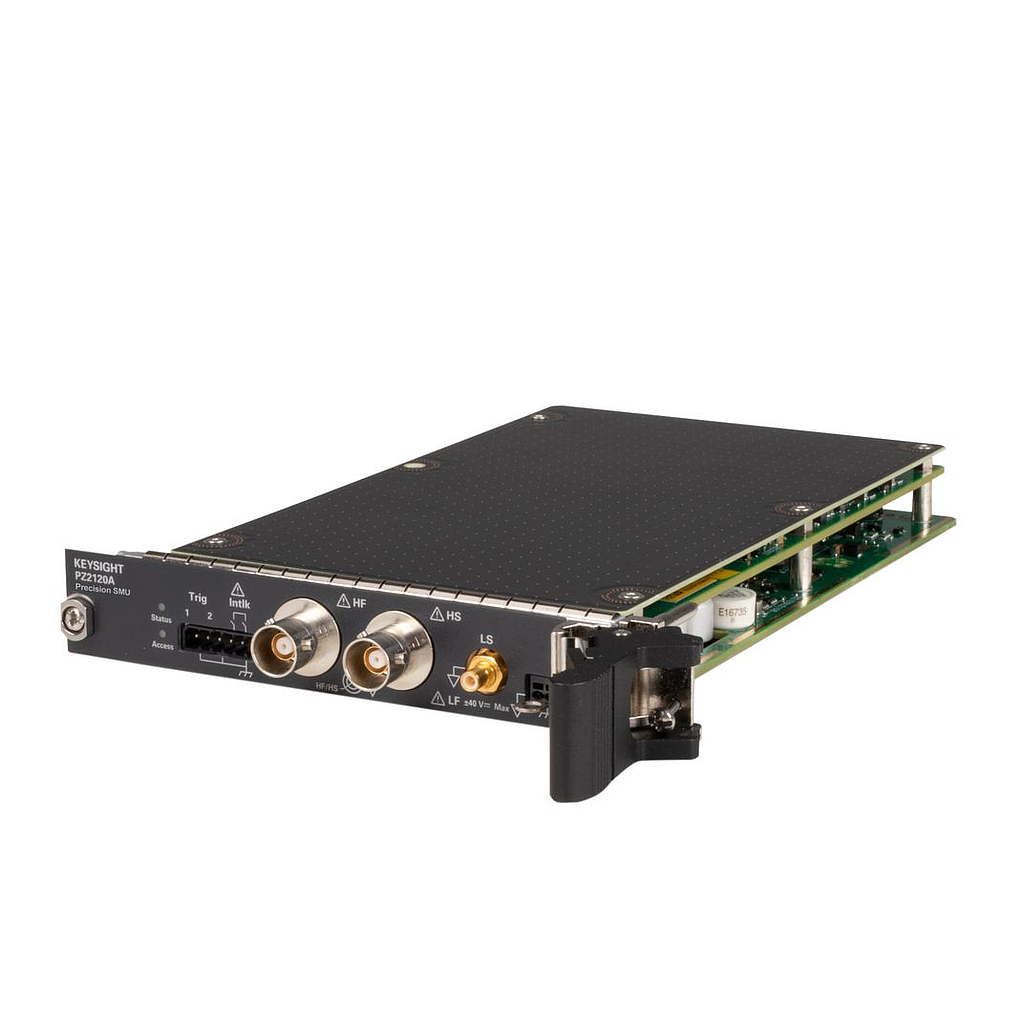

KEYSIGHT PZ2120A ແຫຼ່ງທີ່ມາ/ໂມດູນການວັດແທກຄວາມຊັດເຈນ (1CH, 1 MSa/s, 100 fA, 60 V, 3.5 A DC/10.5 A pulse)
Number of channels: 1
Number of slots: 1
Output range
Max. voltage: 60V
Max. current (DC): 3.5 A
Max. current (Pulse): 10.5A
Resolution Min. voltage: 6 uV
Min. current: 100 fA
Current measurement noise RMS (1 PLC): 400 fArms
Voltage source noise
Peak-to-peak (0.1 - 10 Hz): < 12μV
Peak-to-peak (20 MHz): < 30 mV
RMS (20 MHz): < 2.5 mVrms
RMS (200 MHz): < 4.5 mVrms
Min. pulse width: 50 μs
Max. slew rate: 3.5 V/μs
Digitizer mode: Yes
Max. sampling rate: 1 MSa/s
Auto measurement ranging: Yes
Seamless current measurement ranging: Yes
Remote sense (4-wire connection): Yes
Guard shield port for low current measurement: Yes
Operation mode
Standard mode: Yes
PS mode: Yes
High capacitance mode: Yes
Laser diode mode: Yes
Temperature: 0°C ± 50°C
Humidity: 10% to 80%
Warm-up time: 40 minutes
Self-calibration: Performed within the last 24 hours.
Ambient temperature changes less than ± 5 °C after self-calibration execution.
Calibration period: One year
Aperture time: 1 PLC
Terminal connection: Kelvin connection
