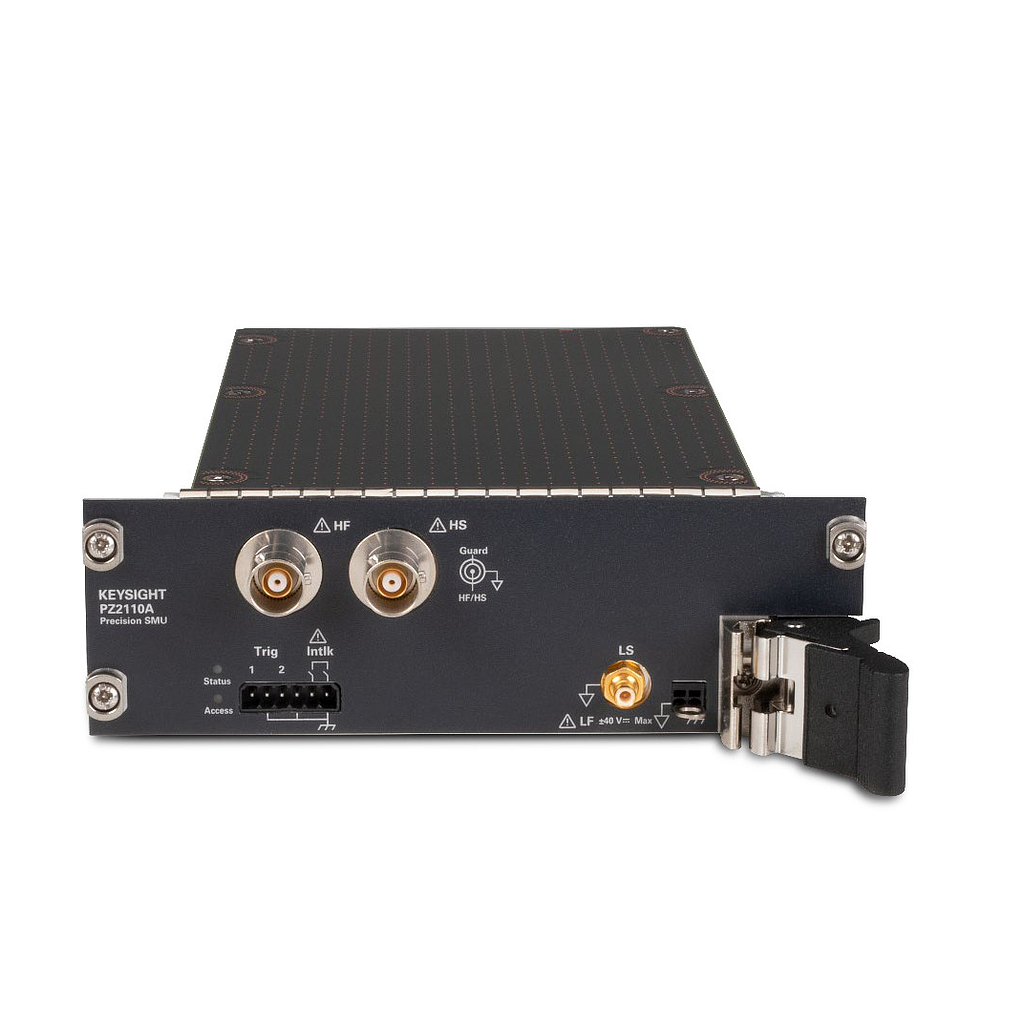

KEYSIGHT PZ2110A ແຫຼ່ງທີ່ມາ/ໂມດູນການວັດແທກຄວາມຊັດເຈນ (1CH,1.25 MSa/s, 10 fA, 210 V, 315 mA)
Number of channels: 1
Number of slots: 2
Output range
Max. voltage: 210V
Max. current (DC): 315 mA
Max. current (Pulse): 315 mA
Resolution Min. voltage: 500 nV
Min. current: 10 fA
Current measurement noise RMS (1 PLC): 30 fArms
Voltage source noise
Peak-to-peak (0.1 - 10 Hz): < 4μV
Peak-to-peak (20 MHz): < 25 mV
RMS (20 MHz): < 3 mVrms
RMS (200 MHz): < 5 mVrms
Min. pulse width: 20 μs
Max. slew rate: 1.4 V/μs
Digitizer mode: Yes
Max. sampling rate: 1.25 MSa/s
Auto measurement ranging: Yes
Seamless current measurement ranging: No
Remote sense (4-wire connection): Yes
Guard shield port for low current measurement: Yes
Operation mode
Standard mode: Yes
PS mode: Yes
High capacitance mode: No
Laser diode mode: No
Temperature: 23°C ± 5°C
Humidity: 20% to 60%
Warm-up time: 40 minutes
Self-calibration: Performed within the last 24 hours.
Ambient temperature changes less than ± 5 °C after self-calibration execution.
Calibration period: One year
Aperture time
1 PLC (100 nA to 300 mA ranges, voltage ranges)
10 PLC (1 nA and 10 nA ranges)
Terminal connection: Kelvin connection
