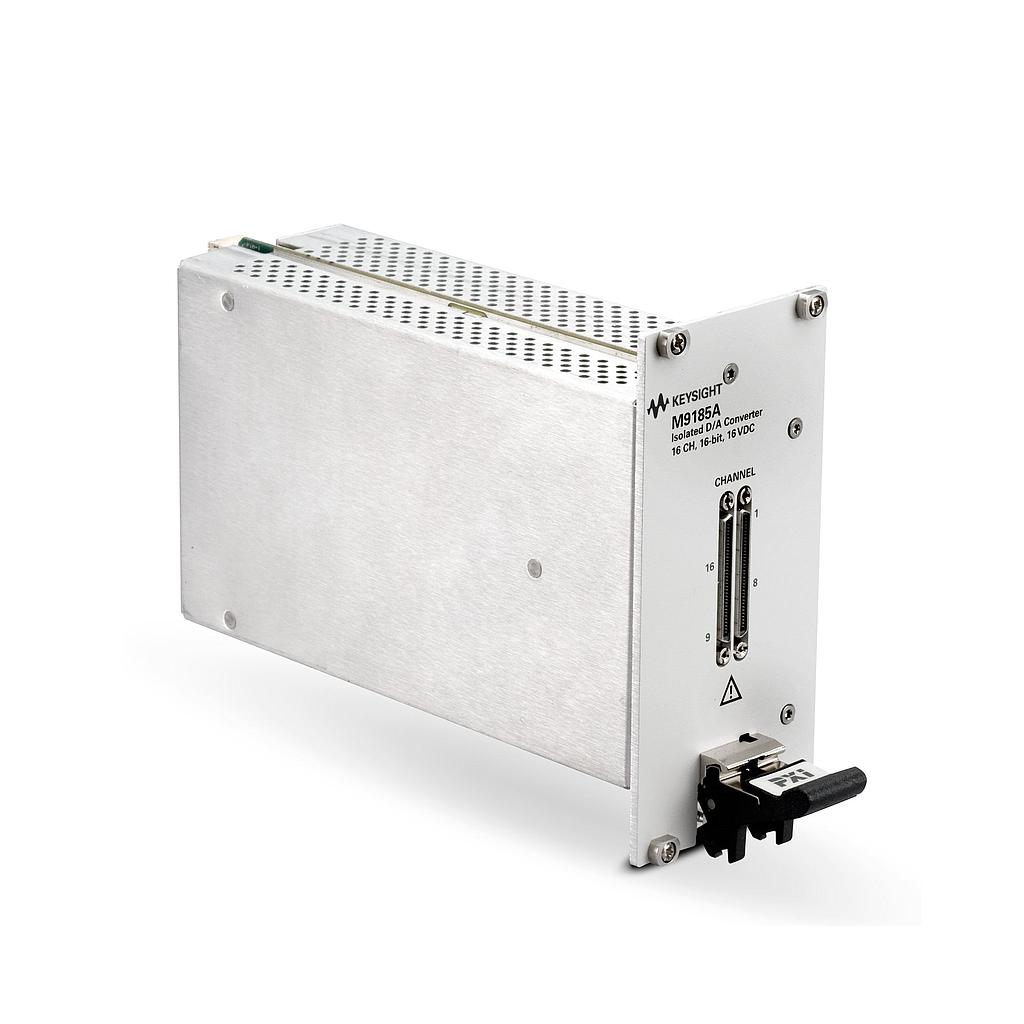

KEYSIGHT M9185A ຕົວປ່ຽນ D/A ທີ່ໂດດດ່ຽວ (8/16 CH)
Number of Channels: 8 or 16 channels
Resolution: 16-bit
Settling Time: 500 µs (typical)
DCV
Range: ± 16 V up to 10 mA
Resolution: 16-bit = 500 µV
Accuracy: ± (0.05% + 3.0 mV)
Ripple and Noise: < 80 mVpk-pk (typical)
DCA
Range: ± 20 mA
Resolution: 16-bit = 630 nA
Accuracy: ± (0.09% + 5.0 µA)
Ripple and Noise: < 2 µArms (typical)
Input Impedance: < 2 µArms (typical)
Output Impedance: 50 Ω typical
Operating temperature: 0 to 55° C
Storage temperature: –40 °C to 70° C
Relative humidity: 80%, 0° C to 40° C (non condensing)
Dimensions: 40.30 mm x 128.40 mm × 215.00 mm (8-Ch); 60.50 mm x 128.40 mm × 215.00 mm (16-Ch)
Weight: 0.47 kg (8-Ch); 0.60 kg (16-Ch)
Warm-up time: 30 minutes
