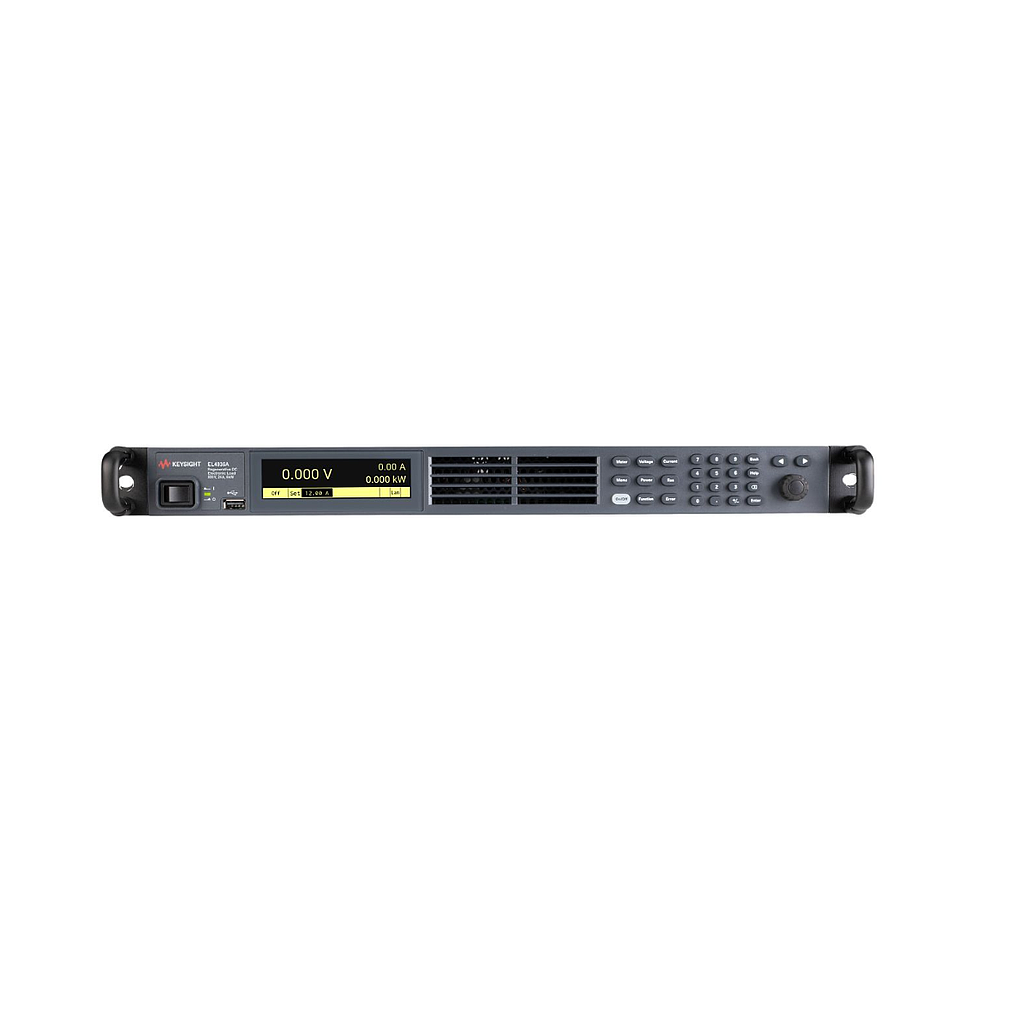

KEYSIGHT EL4915A ອຸປະກອນບັນທຶກອິເລັກທຣອນິກ DC ທີ່ສາມາດຟື້ນຟູ (500V, 12 A, 2 kW)
DC Ratings:
Voltage 500 V
Current 12 A
Power 2 kW
Programming Accuracy:
Voltage 0.03% + 150 mV
Current 0.1% + 12 mA
Resistance 10 mΩ
Power 0.5% + 10 W.
Readback Accuracy:
Voltage 0.03% + 150 mV
Current 0.1% + 12 mA
Power 0.5% + 10 W.
Load Regulation
Voltage ≤ 100 mV
Current ≤ 12 mA
Note: Percent of value + offset; at 23 °C ± 5 °C after a 30-minute warm-up; measurement NPLC=1; valid for 1 year.
Constant Voltage Mode Programming and Readback
Range 0 to 500 V
Resolution 10 mV
Temperature coefficient ≤ 30 ppm/°C.
Constant Current Mode Programming and Readback
Range 0 to 12 A
Resolution 1 mA
Temperature coefficient ≤ 50 ppm/°C.
Constant Resistance Mode Programming
Load resistance range 0.3 to 15,000 Ω
Resolution 10 mΩ.
Constant Power Mode Programming and Readback
Range 0 to 2 kW
Resolution 1 W
Maximum Slew Rate
Rise/Fall slope: 3 kA/s
Line Regulation
Voltage ≤ 100 mV
Current ≤ 7.2 mA.
Protection Capability
Overvoltage 530 V
Overcurrent 12.5 A
Overpower 2,040 W
*For detailed specifications, please refer to the Datasheet.
*Images for illustration purposes only.
