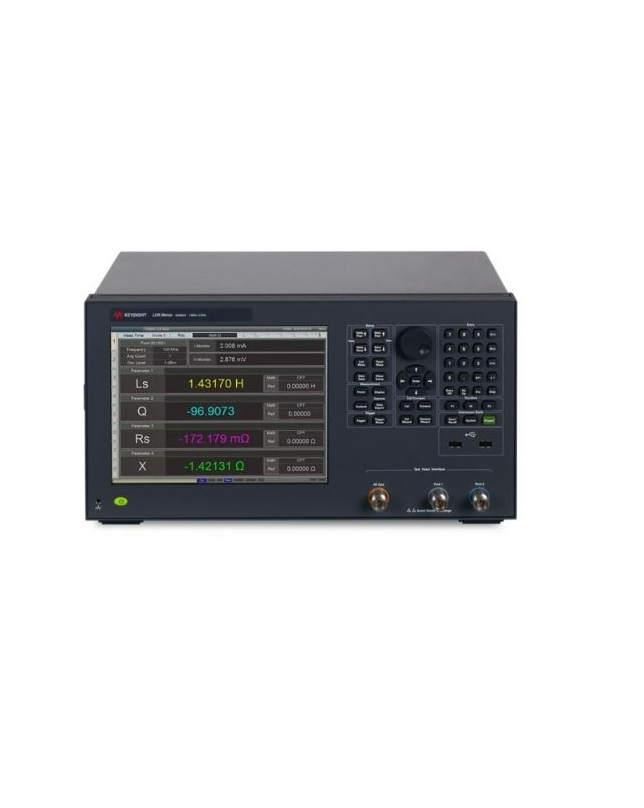

KEYSIGHT E4982A+(option E4982A-300, E4982A-700 16195B, E4982A-710, E4982A-720, E4982A-019) ເຄື່ອງມວດ LCR (1 MHz ~ 3 GHz)
Frequency
Range: 1 MHz to 3 GHz
Resolutionz: 1 kHz 1
Oscillator level
Cable length = 1 m
Power range (When 50 Ω LOAD isconnected to test port)
–40 dBm to 1 dBm
Current range (When SHORT is connected to test port)
0.0894 mArms to 10 mArms
Voltage range (When OPEN is connected to test port)
4.47 mVrms to 502 mVrms
Uncertainty (When 50 Ω LOAD is connected to test port)
(23 °C ± 5 °C)
± 2 dB (frequency ≤ 1 GHz)
± 3 dB (frequency > 1 GHz)
(5 °C to 40 °C)
± 4 dB (frequency ≤ 1 GHz)
± 5 dB (frequency > 1 GHz)
Resolution 0.1 dB (When the unit is set at mV or mA, the entered value is rounded to 0.1 dB resolution.)
Includes:
E4982A-700 16195B: Calibration Kit
E4982A-710: Test Fixture Stand
E4982A-720: 3.5mm to 7mm Coaxial Adapter
E4982A-019: Standard Data Storage
