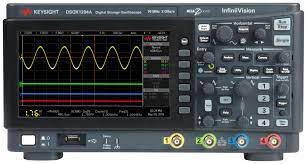

Bandwidth: 70 MHz (base bandwidth)
Analog channels: 4
External trigger: Back panel input (not displayed)
Sample rate per channel (max):
2 GSa/s (one- or two-channel operation)
1 GSa/s (if external trigger view is turned on)
Memory depth per channel (max):
2 M points (one- or two-channel operation)
1 M points (if external trigger view is turned on)
Maximum input voltage: 150 Vrms, 200 Vpk
Waveform update rate 200,000 waveforms per second
Serial protocol analysis Standard : I²C, SPI, UART/RS-232, CAN, LIN
Waveform math: Add, subtract, multiply, divide, FFT (magnitude and phase), low pass filter
Automatic measurements: 14 amplitude, 14 timing, and 4 pulse count measurements
Display: 7-inch TFT LCD WVGA
Connectivity: USB 2.0 (host and device), LAN
Dimensions (W x H x D): 314 mm (12.4 in) x 165 mm (6.5 in) x 130 mm (5.1 in)
Weight Net: 3.23 kg (7.1 lbs), shipping: 4.2 kg (9.2 lbs)
