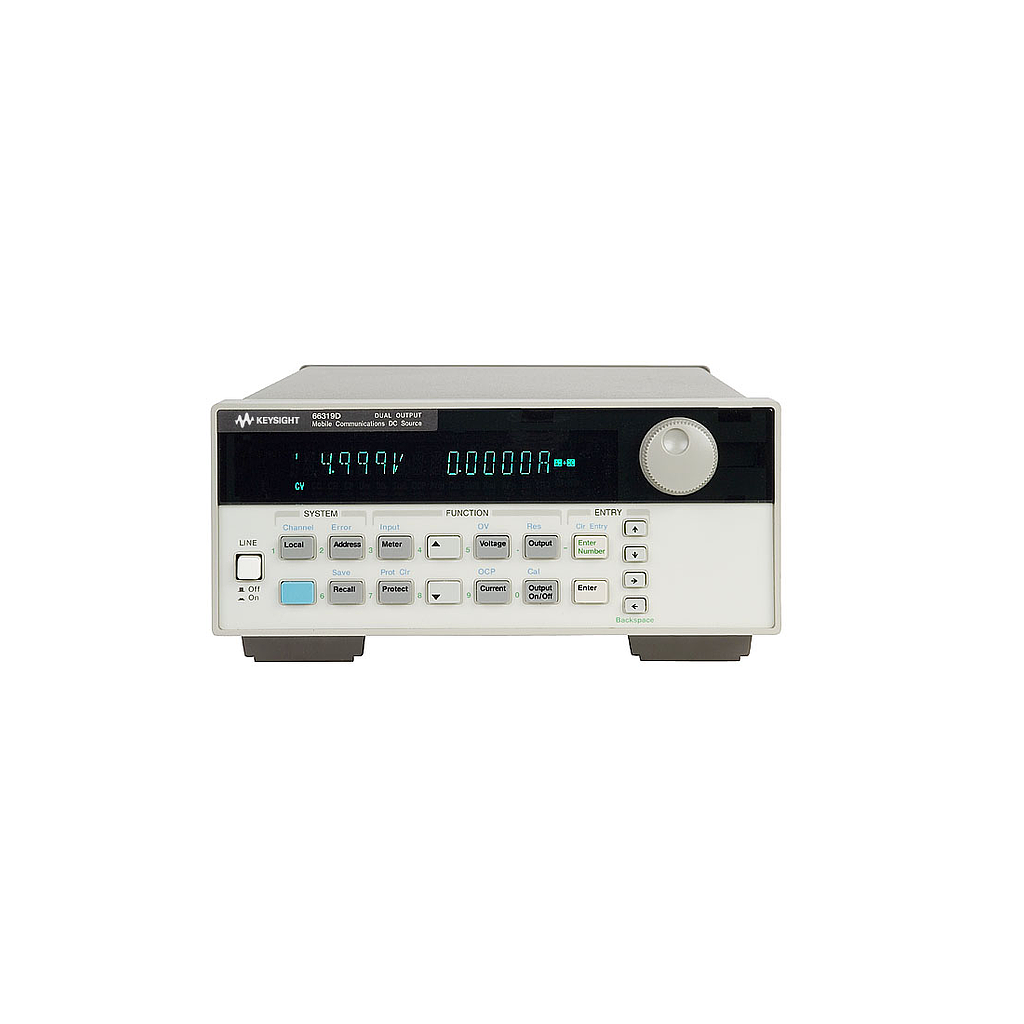

KEYSIGHT 66309D ແຫຼ່ງພະລັງງານ DC ສຳລັບການສື່ສານມືຖືຄູ່ຂ້າງ ມີ DVM (15 V, 3 A, 45 W)
Number of outputs: 2
Output ratings
Voltage: 0 to 15 V
Current: 0 to 3 A
Peak current for up to 7 ms: 5 A
Programming accuracy at 25°C ±5°C (% of setting plus fixed):
Voltage 0.05%+: 10 mV
+Current 0.05%+: 1.33 mA
Ripple and Noise (20 Hz to 20 MHz):
Voltage (rms/p-p): 6 mV
Current (rms): 2 mA
DC measurement accuracy:
Voltage 0.03%+: 5 mV
+20 mA to + rated current 0.2%+: 0.5 mA
-20 mA to - rated current 0.2%+: 1.1 mA
-3 A to + 5 A 0.2%: —
-1 A to + 1 A 0.1%: —
-20 mA to + 20 mA 0.1%+: 2.5 µA
Dynamic measurement system
Buffer size: 4096 points
Sampling interval: 15 µs - 31,200 s
Transient response time: <35 µs
Transient voltage dip (typical with up to 15 feet 22 AWG wiring): 70 mV
Voltmeter input:
Input range: -25 to +25 Vdc
DC readback accuracy (at 25°C ±5°C): 0.04% +5 mV
Auxiliary output
Output ratings
Voltage: 0 to 12 V
Current: 0 to 1.5 A
Programming accuracy:
Voltage: 0.2% + 40 mV
+Current: 0.2% + 4.5 mA
DC measurement accuracy
Voltage: 0.2% + 15 mV
+Current: 0.2% + 3 mA
Ripple and Noise (20 Hz to 20 MHz
Voltage (rms/p-p): 6 mV
Current (rms): 2 mA
