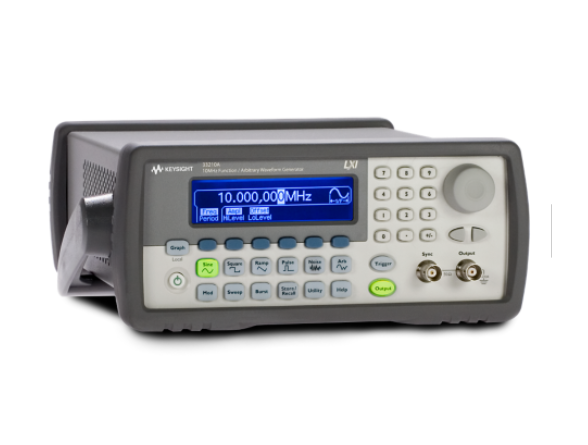

KEYSIGHT 33210A Function/Abitrary Waveform Generator (1µHz~10MHz; 1 channel)
• Frequency range:: 1 µHz to 10 MHz
• Channels: 1
• Frequency resolution: 1 µHz
• Total harmonic distortion 2, 3 DC to 20 kHz: 0.04%
• Phase noise (10 kHz offset): -115 dBc/Hz
• Pulse width: min 16ns, resolution 100ps
• Sample rate: 50 MSa/s
• Amplitude resolution: 14 bits
• Waveform characteristics: Sin, square, triangle, pulse, ramp, Gaussian, PRBS, DC
• Modulation: AM, FM, PWM, PM và FSK
• Sweep mode: Linear, Logarithmic, list
• Programming times (typical): 5 ms
• Display: 4.3" Color TFT WQVGA (480x272)
• Weight: 3.4 kg
• Dimensions (WxHxD): 261.1mm x 103.8mm x 303.2mm
• Operating temperature: 0˚C to 55˚C
• EMC tested to: IEC/EN 61326-1; CISPR Pub 11 Group 1, class A; AS/NZS CISPR 11; ICES/NMB-001; ICES-001
• Satety designed to: UL 61010-1, CSA C22.2 61010-1, và IEC 61010-1:2001
• Power supply: 100 V - 24050/60 Hz -5%, +10%; 100 V - 120 V 400 Hz ±10%
