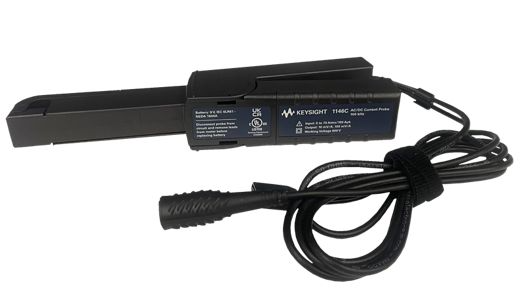

KEYSIGHT 1146C ເຄື່ອງວັດແທກກະແສໄຟຟ້າ AC / DC (100 kHz, 100 A)
Bandwidth: DC to 100 kHz (-3 dB)
Current range:
100 mV/A: 100 mA to 10 A peak
10 mV/A: 1 to 100 A peak
Output signal: 1000 mV peak max
AC current accuracy:
Range 100 mV/A (50 mA to 10 A peak)
Accuracy: 3% of reading ±50 mA
Range 10 mV/A (500 mA to 40 A peak)
Accuracy: 4% of reading ±50 mA
Range 10 mV/A (40 A to 100 A peak)
Accuracy: 15% max at 100 A
Noise:
Range 10 mV/A: 600 µV
Range 100 mV/A: 5 mV
Insertion impedance: 0.01 Ω (50/60 Hz)
Compatibility: Compatible with Keysight InfiniiVision and Infiniium Series oscilloscopes with 1 MΩ input
Maximum working voltage: 600 VRMS CAT II or 300 VRMS CAT III
Maximum common mode voltage: 600 VRMS CAT II or 300 VRMS CAT III
Influence of adjacent conductor: < 0.2 mA/A AC
Influence of conductor position: < 0.2 mA/A AC
Power:
USB
Battery: 9 V alkaline (NEDA 1604A, IEC 6LR61)
Low battery indicator: Green LED on when ≤ 6.5 V
Battery life: 55 hours typical
