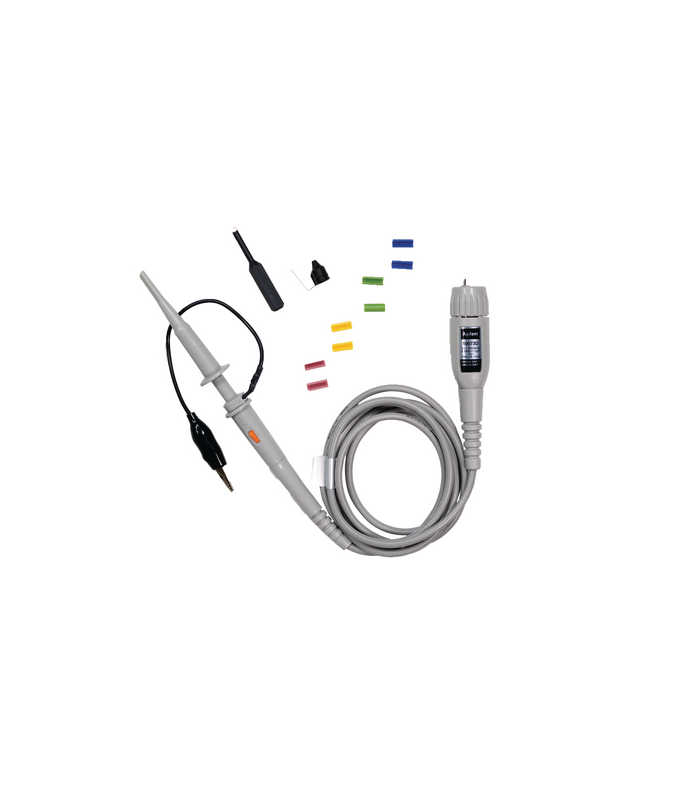

KEYSIGHT 10073D ໂພຣບແບບຕົວຕັ້ງຕົວຕີ (10:1, 500 MHz, 1.5 m)

Bandwidth: 500 MHz

System rise time (calculated): <700 ps

Attenuation Ratio: 10:1

Input resistance: 2.2 MΩ (when terminated into 1 MOhm)

Input capacitance: ~12 pF

Maximum input (dc + peak ac): 500 V CAT I (mains isolated) 300 V CAT II (post receptacle mains)

Compensation range: 6 - 15 pF

The Keysight 10073D passive probe is our most rugged 500 MHz probe. With a 10:1 attenuation ratio and high 2.2 M ohm input impedance, it is ideal as a general purpose, high bandwidth passive probe for the Keysight 300 MHz - 1 GHz 6000 series, 7000, 8000 and 9000 Series oscilloscopes. The probe identification feature automatically configures the oscilloscope for the probe attenuation.
