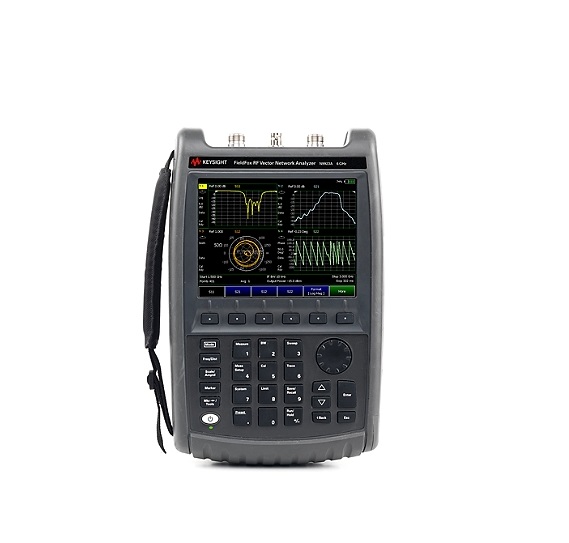

KEYSIGHT N9923A (with option N9923A-104) FieldFox Handheld RF Vector Network Analyzer (2MHz~4GHz)
• Frequency range: 2 MHz to 4 GHz
• Frequency reference:
Accuracy: ±2 ppm
Aging rate: ±1 ppm
Temperature stability: ±1 ppm over –10 to 55 ºC
• Frequency resolution: 1 Hz
• Measurement speed (Sweep time) S11 and S21, 2 MHz to 6 GHz; 30 kHz IFBW, 1001 points: 0.365 ms/point
• Data points 101, 201, 401, 601, 801, 1001, 1601, 4001, 10,001 (custom number of points can be set using SCPI)
• Directivity Corrected: 42 dB
• System dynamic range (S21): 2 MHz to 6 GHz: 100 dB (typical)
• IF bandwidth: 300 Hz, 1 kHz, 3 kHz, 10 kHz, and 30 kHz
• Output power range:
High power: +5 dBm (nominal)
Low power: –40 dBm (nominal)
• Trace noise (high output power, IF band:
Magnitude: < 0.01 dB rms
width = 300 Hz)
• Immunity to interference +16 dBm (nominal)
• Maximum input level port 1 or port 2 +23 dBm /±50 VDC
• Connector type (port 1 and port 2): Type N female
• Weight: 6 lbs / 2.7 kg including battery
• Dimensions (H x W x D): 292 x 188 x 72 mm (11.5” x 7.4” x 2.8”)
• Cable and Antenna Analyzer (CAT) - Optional
• What's Included:
AC/DC adapter
Localized power cord
Battery –rechargeable Li Ion
LAN cable
Soft carrying case with backpack and shoulder strap
Quick Reference Guide
