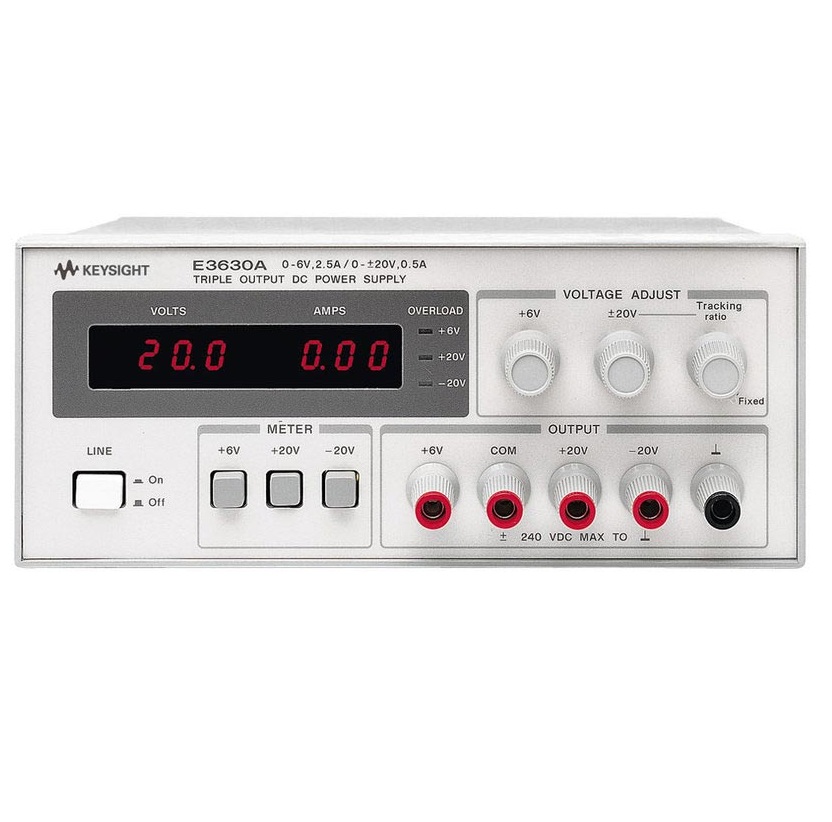

KEYSIGHT E3630A ຫ້ອງທົດລອງການສະຫນອງພະລັງງານ DC, triple-output (6V, 2.5A & ±20V, 0.5A, 35W)

Power (max): 35 W

Output ratings:

Output 1: 0 to 6 V, 0 to 2.5 A

Output 2: 0 to +20 V, 0 to 0.5 A

Output 3: 0 to -20 V, 0 to 0.5 A

Ripple & noise from 20 Hz to 20 MHz

Normal Mode Voltage rms: : < 350 μVrms, < 1.5 mVpp

Peak-to-Peak: < 1.5 mVpp
Common mode current: < 1 μArms

Load & line regulation: 0.01% + 2mV

Meter resolution

Voltage: 10 mV

Current: 10 mA

Meter accuracy: ± 0.5% + 2 counts at 25 ºC ± 5 ºC

Common mode current: < 1 μArms
