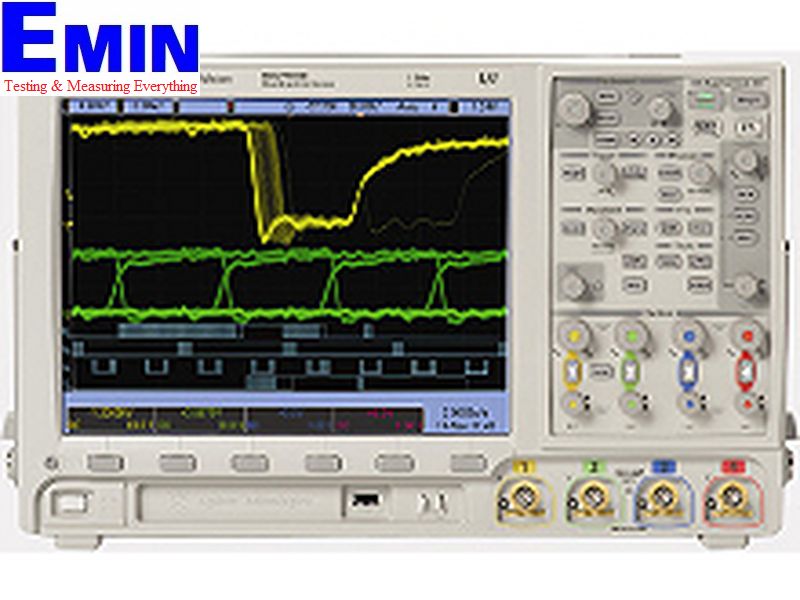

Bandwidth: 1 GHz
Channels: 4 Analog
Maximum sample rate: 4 GSa/s sample rate
Memory: 8 Mpts
Display: 12.1” XGA LCD display,
Maximum input voltage: 400 Vpk
Standard ports: USB 2.0 high-speed device, two USB 1.1 host ports, 10/100BaseT LAN, XGA video output
Dimensions: 45.4 cm x 29.8 cm x 22 cm)
Weight: Net: 5.9 kg (13 lbs) Shipping: 9.3 kg (20.5 lbs)
Manufacturer: Agilent-USA
Option
N2732A: Rack Mount Kit for the 7000 Series Oscilloscopes
N2733A: Soft carrying case for 7000 Series oscilloscopes
N2737A: DSO to MSO upgrade
N2873A: Passive Probe, 10:1, 500 MHz, 1.3 m
N2874A: Passive Probe, 10:1, 1.5 GHz, 1.3 m
N2876A: Passive Probe, 100:1, 1.5 GHz, 1.3 m
N5406A: FPGA dynamic probe option for Xilinx with InfiniiVision Series MSOs
N5423A: I²C and SPI Serial Data Decode Option for InfiniiVision 6000 and 7000B Series Oscilloscopes
N5424A: CAN/LIN Option InfiniiVision 6000 & 7000B Series Oscilloscopes (Option AMS)
N5432C: FlexRay Triggering and Decode
N5454A: Segmented memory acquisition for InfiniiVision Series oscilloscopes
N5455A: (option LMT) Mask/Waveform Limit Testing For Agilent InfiniiVision 6000 & 7000B Oscilloscopes
N5457A: RS-232/UART Serial Triggering and Decode Option
N5468A: I²S triggering and Decode Option for InfiniiVision Series Oscilloscopes
N5469A: MIL-STD 1553 Triggering and Decode
U1881A: Power measurement application for InfiniiVision oscilloscopes
GPIB to LAN adapter for Agilent’s 7000, 9000A and 9000 H-Series oscilloscopes
