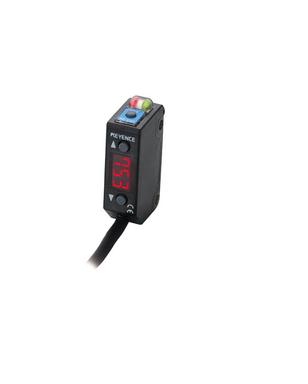

KEYENCE PZ-V31P ເຊັນເຊີໂຟໂຕອີເລັກທຣິກ

Output type: PNP

Sensing distance: 5 – 300 mm (100 × 100 mm white matte paper)*

Setting distance: 40 – 300 mm (100 × 100 mm white matte paper)

Light source: Red LED

Sensitivity adjustment: Automatic push-button

Response time: Max. 1 ms (max. 1.2 ms for frequency switching type, max. 2 ms for M61 only)

Operation mode: Light-ON / Dark-ON

Indicator: ―

Control output

Output current:

NPN: Max. 100 mA (24 V)

PNP: Max. 100 mA (24 V)

Residual voltage: ≤ 1 V

Display

Digital display: Red 7-segment LED, 3 digits

Protection circuit

Reverse polarity protection

Overcurrent protection

Surge protection

Power supply

Supply voltage: 12 – 24 VDC ±10%, ripple < 10%

Current consumption: Max. 37 mA

Environmental specifications

Protection rating: IP67

Ambient light:

Lamp: ≤ 5,000 lux

Sunlight: ≤ 20,000 lux

Operating temperature: -20 to +55 °C (no freezing)

Ambient humidity: 35 – 85% RH (no condensation)

Vibration resistance: 10 – 55 Hz, 1.5 mm double amplitude (2 hours each axis)

Shock resistance: 1,000 m/s², 6 times in X, Y, Z directions

Mechanical

Housing material: Glass fiber reinforced plastic

Accessories: ―

Weight: Approx. 55 g (including 2 m cable)
