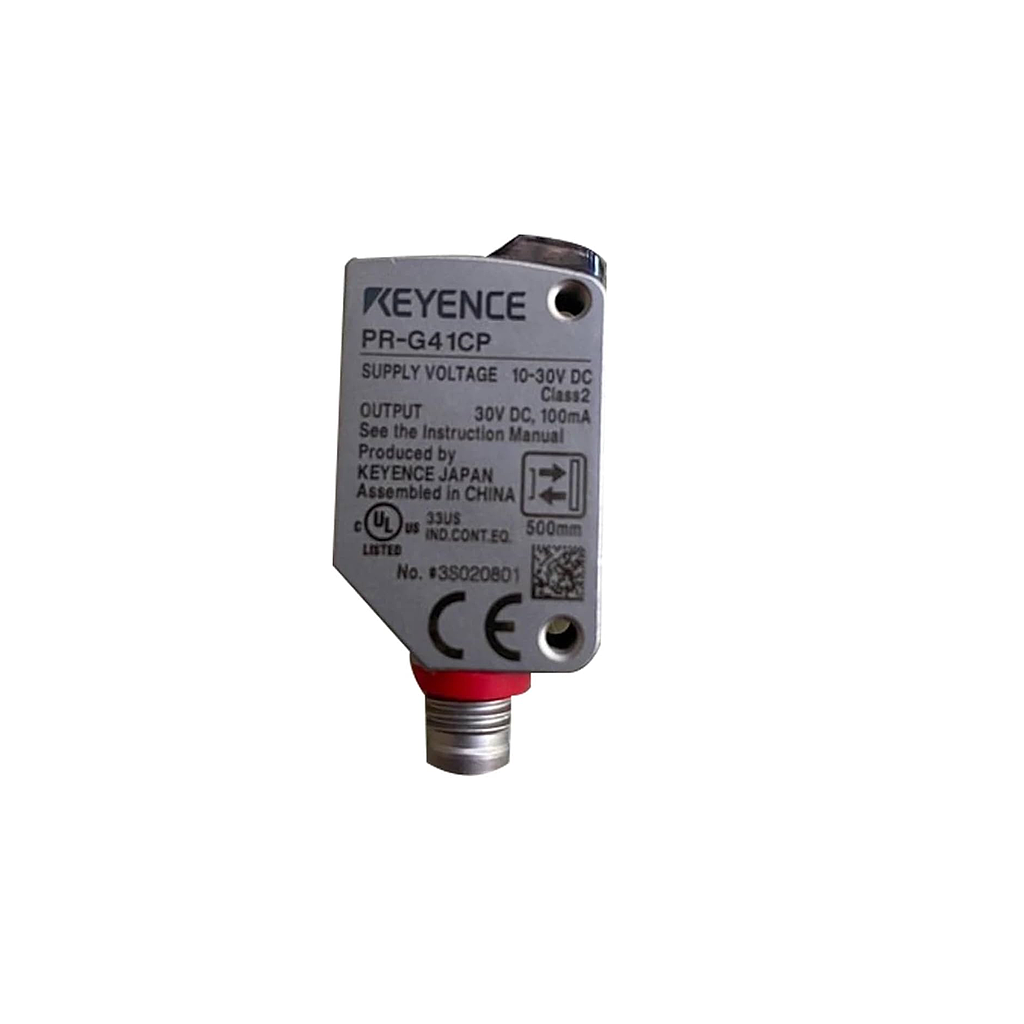

KEYENCE PR-G41CP ເຊັນເຊີໂຟໂຕອີເລັກທຣິກ

Type: Diffuse reflective (Long distance)

Shape: Rectangular

Output: PNP

Cable connection: M8 connector (4 pin)

Detecting distance: 500 mm19.685"

Number of control outputs: 2 (Dark-ON +Light ON)*1

Output operation

Output 1: Light-ON

Output 2: Dark-ON*2

Response time: 0.5 ms

Sensitivity adjustment: Five-turn trimmer

Spot diameter: ø20 mm ø0.79" max. (at 300 mm 11.81")

Light source: 4 elements, Point light source red LED (650 nm)

Light interference prevention function: 2

Indicator lamp: 7 segment display (0 to 999), output indicator (yellow)

Control output

PNP open collector

30 VDC or less, 100 mA or less

Residual voltage: 1.2 V or less at less than 10 mA, 2 V or less at 10 to 100 mA

Stop emission input: ―

Protection circuit: Protection against reverse power connection, power supply surge, output overcurrent, output surge, and reverse output connection

Rating

Power voltage: 10 to 30 VDC, including Ripple (P-P) 10 %

Power consumption: 450 mW max. (15 mA max. at 24 V, 21 mA max. at 12 V)

Environmental resistance

Enclosure rating: IP68 (IEC60529), IP69K (DIN40050-9), 4X, 6P, 13 (NEMA250)*3

Insulation resistance: 20 MΩ or more (500 VDC)

Ambient light: Incandescent lamp: 5,000 lux or less, Sunlight: 20,000 lux or less

Ambient temperature: -20 to +70 °C -4 to 158 °F (No freezing)*4

Relative humidity: 35 to 85 % RH (No condensation)

Storage temperature: -20 to +70 °C -4 to 158 °F

Withstand voltage: 1,000 VAC, 50/60 Hz, 1 min

Vibration resistance: 10 to 55 Hz, Double amplitude 1.5 mm 0.06", 2 hours in each of the X, Y, and Z directions

Shock resistance: 1,000 m/s2, 6 times in each of the X, Y, and Z directions
