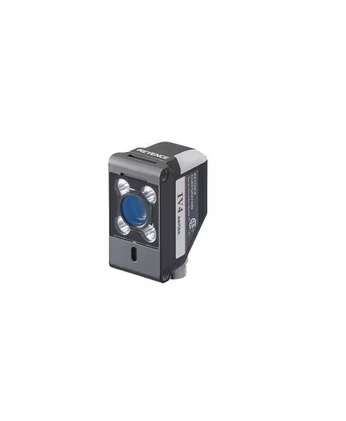

KEYENCE IV4-G500CA ຫົວເຊັນເຊີວິໄສທັດ

Type: Standard model

Installed distance: From 50 mm

Field of view

Installation distance of 50 mm: 22 (H) × 16 (V) mm to

Installation distance of 3000 mm: 1184 (H) × 888 (V) mm (reference value)

Image receiving element

Type: 1/2.9 inch colour CMOS

Number of pixels: 1280 (H) × 960 (V)

Focus adjustment: Auto *1

Exposure time: 12 μs to 9 ms *2

Lights

Illumination: White LED

Lighting method: Switchable between pulse and continuous lighting

Indicators: 2 indicators (both displaying same content)

Power supply

Average power consumption

2.5 W (without AI imaging illumination unit installed)

6.6 W (with AI imaging illumination unit installed)

Environmental resistance

Enclosure rating

IP67 *3

Ambient temperature: 0 to +50°C (no freezing) *4

Relative humidity: 85% RH or less (no condensation)

Vibration resistance

Frequency: 10 to 500 Hz;

Power spectral density: 0.816 G2/Hz; X, Y and Z directions

Shock resistance: 500 m/s2 3 times in each of 6 directions

Material: Main unit case: Zinc die-casting. Front cover: Acrylic. Operation indicator cover: TPU *5

Weight

Approx. 75 g (no AI imaging illumination unit)

Approx. 225 g (with AI imaging illumination unit)
