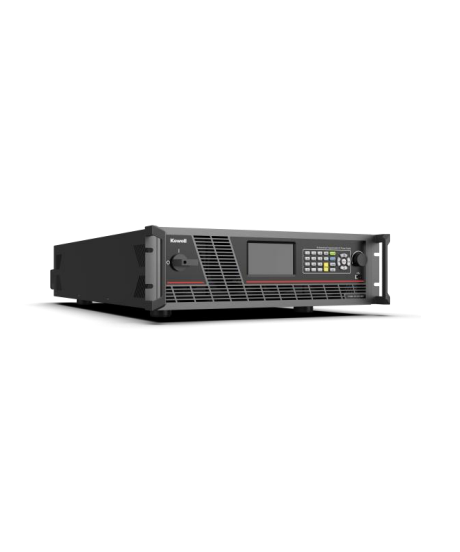

Kewell S7200NG-30K-2400-80 ລະບົບແຫຼ່ງພະລັງງານ DC ແລະ ລະບົບໂຫຼດທີ່ສາມາດຕັ້ງໂປຣແກຣມໄດ້ສອງທິດທາງ (30kW, 2400V, 80A)
Output range:
Output voltage : 0~2400V
Output current: 0~80A
Output power: 0~30kW
Read-back resolution
Voltage: 0.001V
Current: 0.001A
Power: 0.1W
Accuracy
Voltage: ≤0.02%F.S.
Current: ≤0.05% F.S.
Line regulation
Voltage: ≤0.02%F.S.
Current: ≤0.02%F.S.
Load regulation
Voltage: ≤0.05%F.S.
Current: ≤0.05%F.S.
Ripple
Voltage Vpp (20MHz): ＜2400mV
Voltage (rms): ＜400mV
Current(rms): ＜200mA
Slope/ Slew rate
Voltage (no load): 0.001V/ms～500V/ms
Voltage (full load): 0.001V/ms～500V/ms
Current: 0.001～150A/ms
Dynamic response time: ＜500μs
AC input
Voltage: 342～528Vac
Frequency: 47Hz～63Hz
Max. current: 53.8A
Max. apparent power: 32kVA
Load parameters:
Rated values
Input voltage:2400V
Input current: 80A
Input power: 30kW
Input resistance: 7500Ω
Min. operating voltage: 65V@80A
Read-back resolution
Voltage: 0.001V
Current: 0.001A
Power: 0.1W
Resistance: 0.001Ω
Accuracy
Voltage: ≤0.02%F.S.
Current: ≤0.05% F.S.
Power: ≤0.1% F.S.
Resistance: ≤1%Rmax (0～10%Rmax); ≤5%Rmax (10%～Rmax)
General parameters
Withstand voltage:3000Vdc
Efficiency: 95.50%
Power factor: ＞0.99
Protections: OVP, OCP, OPP, OTP, islanding protection, Sense reverse polarity protection
Communication interface: RS232/LAN/CAN/USB/Analog IO/DigitalIO
IP rating: IP20
Storage temperature: -20℃ ~ +70℃
Operating temperature: 0～40℃
Humidity: 0～90%RH, 25℃ non-condensing
Altitude: 2000m
Dimensions (mm): 669(D)*445(W)*130(H)
Weight (net weight): 40.5kg
*Images are for illustration purposes only
