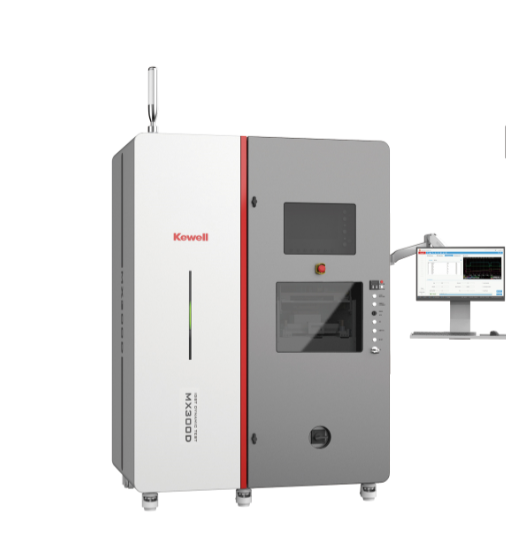

Kewell MX300D-1500-3000 ລະບົບການທົດສອບແບບເຄື່ອນໄຫວ IGBT (0-1500V)
Output:
Voltage range: 0-1500V
Voltage precision: 0.1%FS
Voltage resolution: 0.1V
Voltage measurement:
LeCroy oscilloscope (Resolution: 12 bit, 4-channel; Band width: 350MHz; Sampling rate: 2.5GS/s)
YOKOGAWA 701977 differential voltage probe (Band width: 50MHz; Peak voltage: 7000V
Rated current: 10~3000A
Current precision: ±10%rdg
Current resolution: 1A
Current measurement:
LeCroy oscilloscope (Resolution: 12 bit, 4-channel; Band width: 350MHz; Sampling rate: 2.5GS/s)
CWT MINI 30B Rogowski coils
Parameters:
Work mode: Laboratory mode/Production mode
Positive & negative gate voltages: 0.5~30V
Gate voltage precision: 2%FS
Gate voltage resolution: 0.1V
Inductor load: 20µH; 50µH; 100µH; 200µH; 500µH; 1000µH; 2000µH
Substrate temp. range: 25~200℃
Substrate temp. precision: 0.5%FS
Substrate temp. resolution: 0.1℃
Reserved Interface:
Fixture (adapter): Customize according to IGBT models.
External load: Can be connected to user-selected devices
Gate resistance: Can be connected to user-selected devices
Gate capacitance: Can be connected to user-selected devices
Gate clamp: Can be connected to user-selected devices
Collector clamp: Can be connected to user-selected devices
Protection:
Overcurrent: Overcurrent protection point is editable; Fast protection activation
Input: OVP/OCP/Over-load/Under-voltage/Phase loss etc.
Output: OVP/OTP/OCP etc.
Specifications:
Protection level: IP21 (indoor)
Dimensions: 805mm (D) × 1400mm (W) ×1915mm (H)
Ambient Temperature: 25℃±10℃
