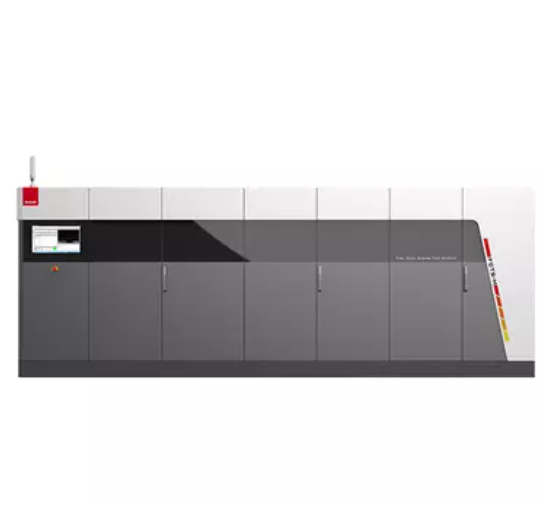

Kewell FCTS-M-100 ລະບົບທົດສອບເຄື່ອງຈັກນໍ້າມັນເຊື້ອໄຟ (100kW, 40-2000 NLPM)
Rated power: 100kW
Gas System:
Hydrogen flow range: 40-2000 NLPM
Hydrogen flow resolution: ±1%FS
Nitrogen purging: Yes
Exhaust gas mode: Mixing (water/gas separation) (Can be independently exhausted according to demand.)
Cooling System:
Internal circulation cooling: Cooling water circulation
Coolant: Deionized water
Temperature control precision: ±1℃ (steady state); ±1.5℃ (dynamic state)
Cooling method: Secondary cooling water
Conductivity monitoring: Precision≤1.5%FS
Water purging: Yes
Protection System:
Hydrogen leakage alarm: Editable
Insulation detection: Editable
Emergency stop: Emergency stop button; Indicator lights of running status*3
KDLF:
Rated power: 150kW
Type: Energy Recycling electronic load (Energy recovery is available in full power range.) Complete grid protection (overvoltage/undervoltage/overcurrent)
Current response time: ≤10ms
Voltage range: 24~800Vdc
Current range: 0~800A
General Specifications:
Control system: PLC
Human-computer interface: LCD
External communication: CAN
Internal communication: LAN
Power supply: AC 380V three-phase five-wire
Low-voltage power supply: ±24V (standard) Other power supplies (optional)
Ambient temperature: 0~40℃
Dimensions (width*depth*height)(mm): 1600*1000*1900
