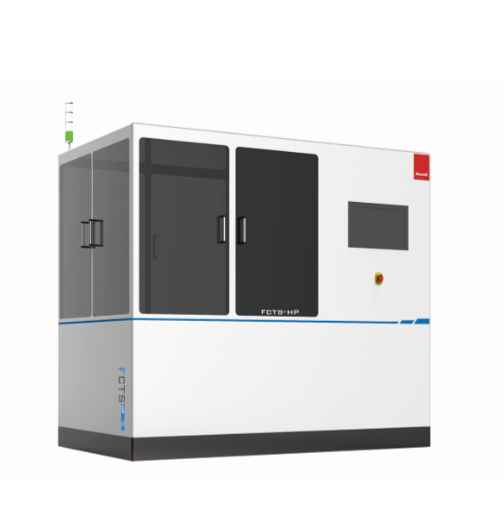

Kewell FCTS-HP-2 ລະບົບການທົດສອບການໄຫຼວຽນຂອງເຊນນໍ້າມັນເຊື້ອໄຟ Hydrogen Pump (50-2500NLPM)
Measurement:
Flow detection range: 50-2500NLPM
Flow measurement precision: ±1%FS
Temperature measurement precision: ±0.5℃
Pressure measurement precision: ±0.5%FS
Pressure control range: 0-300kPa (G)
High-voltage Power Supply:
Rated power: 3200W
Type: High precision DC power supply
Voltage range: 24-800Vdc
Voltage precision: 0.1%+0.1%FS
Voltage ripple (P-P): 500mv
Low-voltage Power Supply:
Voltage: 12V; 24V
Rated power: 450W; 1000W
Rated current: 37.5A; 42A
Voltage precision: ±1%FS
Voltage ripple (P-P): 150mv; 200mv
General Specifications:
Control system: NI
Human-computer interface: Upper computer
External communication: CAN
Internal communication: LAN
Power Supply: AC380V, three-phase five-wire
Ambient temperature: 0~40℃
