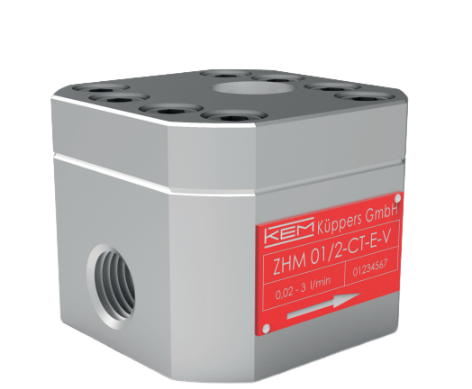

KEM ZHM 01/2 CT.E.V Gear Flow Meters ໃນການອອກແບບຕະຫລັບ (0.02 to 3.0 L/min)
Application: Dosage control(Paint shops)
Process Medium:
Paints, waxes, amine
Less lubricating
Medium viscosity
Attributes:
Stainless steel body
Tungsten carbide sleeve bearing
Ball bearing (optional)
Technical Data – Sizes
Measuring Range(l/min): 0.02 to 3.0
K-Factor(pulses/l): 14,000
max. Pressure(bar/psi): 200 [2,900]
Frequency(Hz): 4.6 to 700
Weight(kg): 0.5
Technical Data – General
Measuring Accuracy: Up to ±0.1 %4)
Repeatability: ±0.05 % (under the same conditions)
Linearity: ±0.5 % of actual flow (viscosity ≥ 30 mm²/s)
Materials
Housing: as per DIN 1.4305 [AISI 303]
Wheels: as per DIN 1.4122
Bearing: Tungsten carbide sleeve bearing, stainless steel ball bearing
Seals: PTFE (others on request)
Medium Temperature: -40 °C up to +180 °C [-40 °F up to +356 °F] (others on request)
Dimensions: See dimensional drawing (In details)
See datasheet for choosing suitable configurations!
