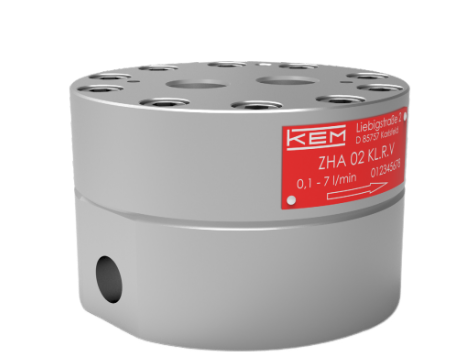

Application: Test bed monitoring(Hydraulics)
Process Medium:
Hydraulic fluid, ATF
Lubricating
Medium viscosity
Attributes:
Aluminum body
Stainless steel ball bearing
Bigger tolerances
Technical Data – Sizes
Measuring Range(l/min): 0.02 up to 3.0
K-Factor(pulses/l): 14,000
max. Pressure(bar/psi): 420 [6,000]
Frequency(Hz): 4.6 up to 700
Weight(kg): 0.8
Technical Data – General
Measuring Accuracy: Up to ±0.1 %4)
Repeatability: ±0.05 % (under the same conditions)
Linearity: ±0.5 % of actual flow (viscosity ≥ 30 mm²/s)
Materials
Housing: as per DIN 3.4365 (EN AW 7075)
Gears: as per DIN 1.4122
Bearing: Stainless steel ball bearing
Seals: FKM, PTFE
Medium Temperature: -40 °C up to +150 °C [-40 °F up to +302 °F] (others on request)
Dimensions: See dimensional drawing (In details)
See datasheet for choosing suitable configurations!
