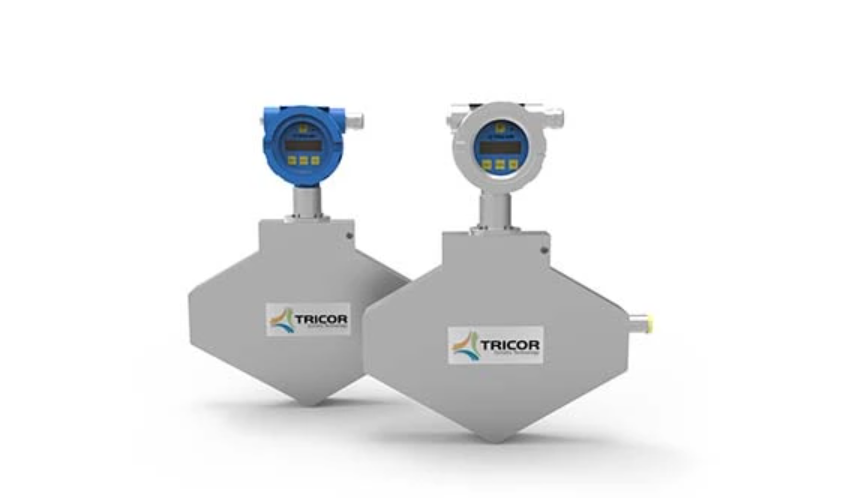

KEM TCM 1550 ເຄື່ອງວັດແທກການໄຫຼຂອງມວນ Coriolis ສໍາລັບທາດແຫຼວ ແລະທາດອາຍພິດ (1550 kg/h | 57 lb/min, DN6 mm | 1/4″)
Nominal Line Size: 1/8” | DN4 mm
Maximum Flow Rate: 1,550 kg/hr | 57 lbs/min | 1,550 l/hr | 6.82 gpm | 234 bbl/d (US)
Pressure Rating: 2,900 psi | 200 bar
Measuring Accuracy*: ±0.1% of flow rate (Liquids) | ±1.0% of flow rate (Gases)
Repeatability: ±0.05% of flow rate (Liquids) | ±0.25% of flow rate (Gases)
Zero Stability: ±0.01% of full scale
Density Range: up to 2,500 kg/m3 (2.5 g/cm3)
Process Temperature Range: Standard: -40°F to 212°F (-40°C to 100°C) | Optional: -76°F to 392°F (-60°C to 200°C)
Temperature Accuracy: ±1.8°F ±0.5% of reading | ±1.0°C ±0.5% of reading
Temperature Repeatability: ±0.36°F | ±0.2°C
Calibration: 5-point logarithmic calibration
Standard Process Connection: Female thread 0.5” NPT
