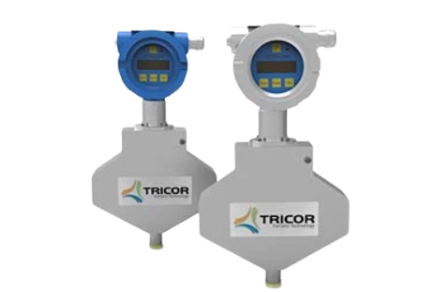

KEM TCM 0325 ເຄື່ອງວັດແທກການໄຫຼຂອງມະຫາຊົນ Coriolis ສໍາລັບທາດແຫຼວ ແລະທາດອາຍພິດ (325 kg/h| 325 l/h, DN4 mm|1/8″)
Flow Rate
Mass Flow Rate (max.): 325 kg/h [12 lb/min]
Volumetric Flow Rate (max.): 325 l/h [1.43 gpm, 49 oil bbl/d (US)]
Nominal Meter Size: DN4 [1/8”]
Pressure Rating
200 bar [2,900 psi]
Option: up to 345 bar [5,000 psi]
Accuracy (Liquids)
Basic Accuracy (Mass Flow): ±0.1 % of flow rate
Repeatability (Mass Flow): ±0.05 % of flow rate
Basic Accuracy (Volume Flow): ±0.15 % of flow rate
Repeatability (Volume Flow): ±0.05 % of flow rate
Zero Stability: ±0.01 % of full scale
Accuracy (Gases)
Basic Accuracy (Mass Flow): ±0.5 % of flow rate
Repeatability (Mass Flow): ±0.25 % of flow rate
Density
Density Range: up to 2,500 kg/m3 [2.5 g/cm3]
Density Accuracy: ±1.0 kg/m3 [±0.001 g/cm3]
Density Repeatability: ±0.5 kg/m3 [±0.0005 g/cm3]
Temperature
Process Temperature Range: -40 °C ... +100 °C [-40 °F ... +212 °F]
Option:
-60 °C ... +200 °C [-76 °F ... +392 °F]
Temperature Accuracy: ±1 °C ±0.5 % of reading [±1.8 °F ±0.5 % of reading]
Temperature Repeatability: ±0.2 °C [±0.36 °F]
Materials (Wetted Parts)
Tubes: 1.4404 [AISI 316L]
Case: 1.4404 [AISI 316L]
Flow Splitter: 1.4404 [AISI 316L]
Brazing Alloy: BNi-2
