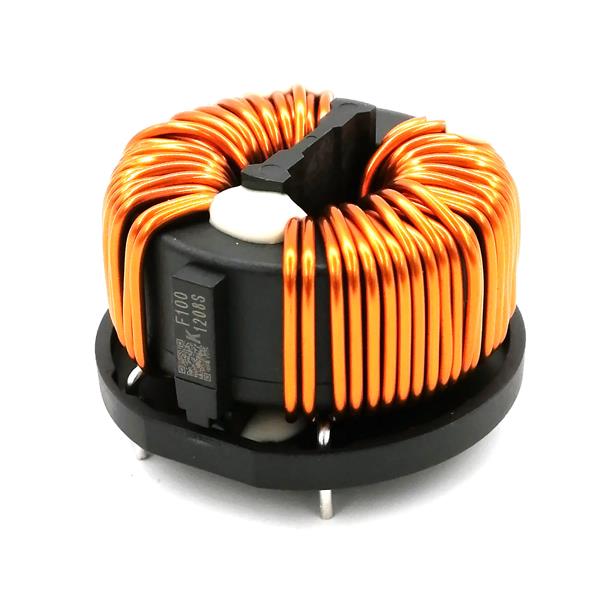

KEMET SCF39XV-140-1R8A019JH ຂອງລະດັບລົດຍົນ ເຄື່ອງວັດຄວາມຕ່າງຂອງຟາສດຽວ ຮູບແບບທົ່ວໄປ 1000V 9 mH 14 A Sing-Phs 8.660 mohm AEC-Q200

Height: 33 mm

Diameter: 53 mm

Shielding: Unshielded

Tolerance: - 30 %, + 50 %

Inductance: 9 mH

Application: High Voltage Automotive and Harsh Environment Industrial EMI Filtering, Medium Power Drives, On Board Charger for EV/PHEV, Wireless Charging Systems with 85 kHz

Filter Type: AC

Unit Weight: 130.100 g

Core Material: Nanocrystalline Metal

Qualification: AEC-Q200

Mounting Style: PCB Mount

Test Frequency: 100 kHz

Termination Style: Through Hole

Maximum DC Current: 14 A

Number of Channels: 1 Channel

Maximum Operating Temperature: + 150 C

Minimum Operating Temperature: - 40 C
