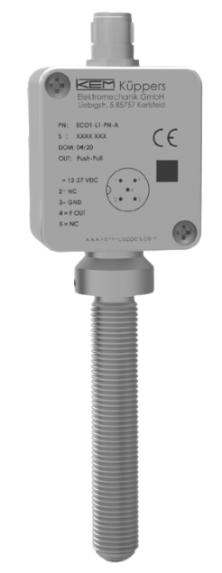

KEM ECO-L1 ECO Pulse Amplifiers (Screw-in M14x1.5 long (1-Channel), -40 °C ... +150 °C)
Mounting: Screw-in M14x1.5 long (1-Channel)
Power Supply (Vcc): 12 ... 28 VDC, regulated
Current Consumption: < 25 mA
Frequency Range: 1 ... 5.000 Hz; suitable for all KEM volumetric counters
Output Stages:
Push-Pull active, PNP, NPN NAMUR
4-20 mA passive + Freq/Pulse (NPN)
0-20 mA active + Freq/Pulse (PP, NPN, PNP)
0-10 V active + Freq/Pulse (PP, NPN, PNP)
Output Signal: 1:1- Frequency or Direction signal & doubled Frequency scaled output values LED indicator for status display
Temperature
Measurement: ±1 °C ±0.5 %
Ambient Temperature: -40 °C ... +60 °C [-40 °F ... +140 °F]
Medium Temperature: Screw-in M14x1.5 long (1-Channel) -40 °C ... +150 °C [-40 °F ... +302 °F]
Housing Material: Aluminium die casting alloy 231 or optional Stainless Steel
Sensor Probe Material: 1.4404 [AISI 316L] all Variants
Protection Class: Aluminium IP65 or optional Stainless Steel IP68 with closed electical connection
Weight: approx. 200 g
