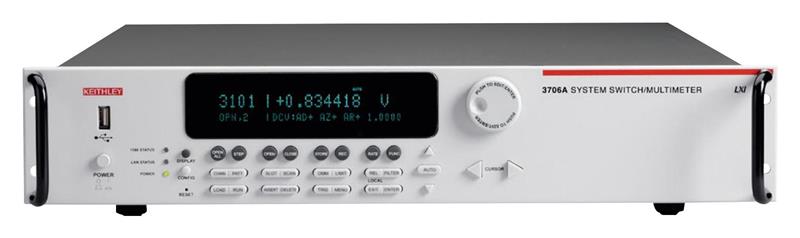

KEITHLEY 3706A+3706A-EW-3Y ມັວລຕິເມຕເຕີ (300VAC/DC, 3AAC/DC)

rue RMS

Power (S): 28 VA

DCV: 100 mV, 1 V, 10 V, 100 V, 300 V / ±30 ppm

Ω (Resistance): 1 Ω, 10 Ω, 100 Ω, 1 kΩ, 10 kΩ, 100 kΩ, 1 MΩ, 10 MΩ, 100 MΩ / ±60 ppm

DCA: 10 µA, 100 µA, 1 mA, 10 mA, 100 mA, 1 A, 3 A / ±500 ppm

ACV: 100 mV, 1 V, 10 V, 100 V, 300 V / ±0.06%

ACA: 1 mA, 10 mA, 100 mA, 1 A, 3 A / ±0.08%

Temperature: J, K, N, T, E, R, S, B / 0.001 °C

Frequency: 3 Hz ~ 300 kHz

Functions: Rel, dB, limit test, %, mX, Triggering, etc.

Interfaces: Ethernet, GPIB, USB

Slots: 6 slots

Power supply: 100 ~ 240 V / 50, 60 Hz

Dimensions & Weight: 89 × 483 × 457 mm, 13 kg

Accessories: User manual, Power cord, Test connectors, Interface cable

Come with 3 years warranty
