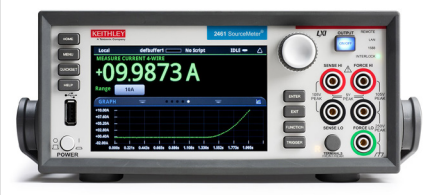

KEITHLEY 2461 SourceMeter SMU Instrument (100V, 10A, 1000W)
Max DC Current 7A
Max Voltage 100V
Max Pulse Current 10A
DC/Pulse Power 100W/1000W
Digitizers Dual 18-bit 1MS/s
Wideband Noise <4.5mvrms typ="" br=""> Sweep Types Linear, Log, Dual
Linear, Dual Log,
Custom
Reading Buffer
Size
>2 Million Point
Reading Buffer
Programming
Command Type
SCPI Programming
+ TSP Scripting
PC interface GPIB, USB,
Ethernet (LXI)
Signal Input
Connections
Front: Banana Jacks
Rear: Mass Screw
Terminal Connection
Power Supply: 100V to 240V RMS, 50–60Hz
With handle and bumpers: 106mm high × 255mm wide × 425mm deep (4.18 in ×
10.05 in × 16.75 in).
With bumpers and handle: 4.75 kg
