Accuracy: 0.05%F.S
Frequency: 1.000Hz～99.999kHz
DC voltage: 0~30V
DC mV: 0～100 mV
DC mA: 0～24 mA
Waterproof protection: IP67 grade
Supply power: DC 24V
Weight : 0.35kg
Dimensions: 185mm×93mm×47mm

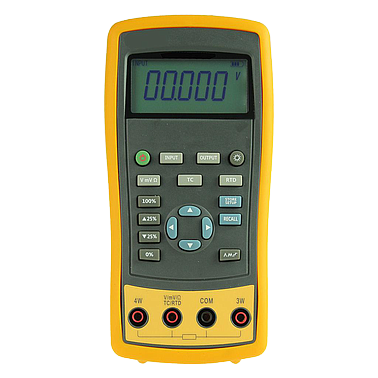

KT1815 Hand-held Current and Voltage Calibrator integrates measurement and output of V, mV, mA, Hz into one. High precision, high resolution and reliable. With big LED, the data could be showed more clearly. With adjustable backlight and auto power off function. Direct current or exchange current power supply make it convient to use.
Features
Accuracy: 0.05%F.S
Measure and source voltage, current (active or passive), mV and frequency.
May simulate two-wire channel transmitter.
Perfect performance on waterproof protection: IP67 grade
In case of connecting 220V voltage with automatic over voltage protection function
With manual stepping, automatic stepping and 0 ~ 100% output of phase step and ramp function.
Big LED with adjustable backlight and auto power off function.
Supply DC24V circuit power.
Weight : 0.35kg
Dimensions: 185mm×93mm×47mm
Technical Specification
Measure and Source Functions
|
Function |
Measure |
Source |
|
DC V |
0～30 V |
0～10 V |
|
DC mV |
0～100 mV |
0～100 mV |
|
DC mA |
0～24 mA |
0～24 mA |
|
Frequency |
1.000Hz～99.999kHz |
0.00Hz～20.000kHz |
|
Others |
24V power supply, Step, Ramp. |
|
