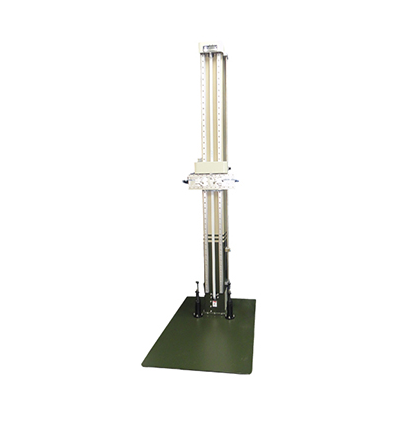

KDI KD-208 A ການທົດສອບການຫຼຸດລົງຈຸດປະສົງຂະຫນາດນ້ອຍ (~ 2000mm)

Products: Testing of Mobile phones, batteries, PDA, digital camera and other hand-held communications and IT product.

Size: 30mm ~ 220mm; or customized special sizes. Maximum test weight: 5Kg:

Test height: Simple-drop type: 700 ~ 2000mm; guided-drop type: 350 ~ 2000mm

Machine structure: Enhanced structural design: supported by multi-parallel columns; use precision screw rod to drive jig.

Level adjustment: Digital-type height adjustment (accuracy to 1mm)

Fall way:

1. Simple-drop type: test piece makes free-fall drop from test height.

2. Guided-drop type: test pieces makes free-fall drop under fixture-assisted condition.:

Landing means:

1. Free bounces after landing until stationary.

2. Single landing; only allow for landing impact; and use sponge to prevent flip and bounce.:

Floor type: Steel plate; in order to comply with different norms it can install extra cement board, wood or carpet at any time.

Fall angle: Adjust the test direction of specimens that allow testing specimens in any direction (angle, corner line or surface).

Buffer device: High absorption hydraulic buffer

Platform Diameter(mm): 850×1200

Test Height(mm): 35 ~ 1800, 35 ~ 2000, 45 ~ 2500

Max Load(kg): 5/10

Control cabinet size: 600L×500D×1060H mm

Control cabinet weight: < 70 kg

Power required: 220V/10A, single phase

Air pressure required: 5~7

Accessories: Pressure-accumulating bottle
