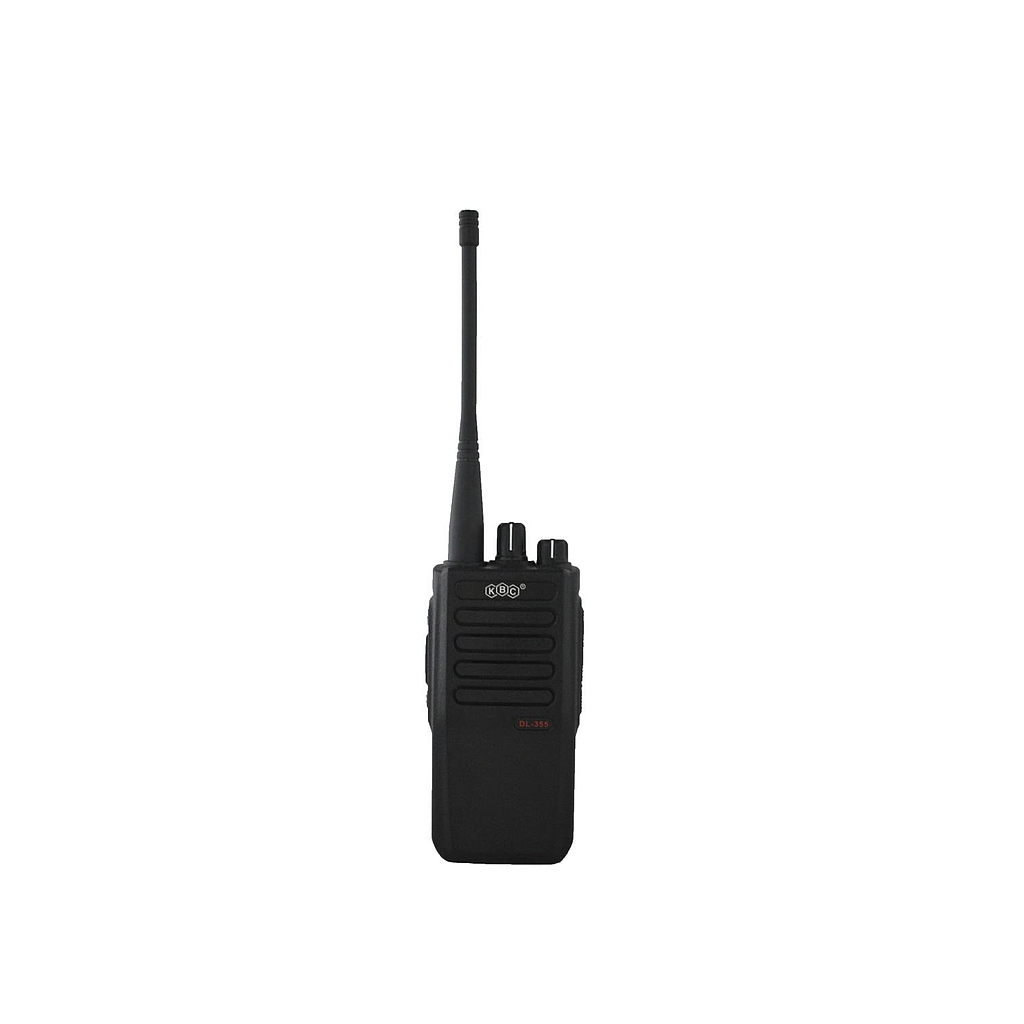

KBC DL-255/355 ວອກກີ້ໂທລກີ້ (136 – 174 MHz, 400 – 470 MHz)

Frequency Range

VHF: 136 – 174 MHz

UHF: 400 – 470 MHz

Number Of Channels: 16 Channels

Channel Spacing

Wide: 25 kHz

Narrow: 12.5 kHz

Antenna Impedance: 50 Ω

Operating Temperature: -20°C To 50°C

Operating Voltage: DC 7.4 V

Battery Capacity: 1100 mAh / 2500 mAh

Dimensions: 132 (H) × 62 (W) × 38 (D) mm

Weight: 250 g

Transmitter

Output Power

High: 5 W

Low: 1 W

Modulation Type: FM (F3E)

FM Noise: Less Than -45 dB

Spurious And Harmonic Radiation: -65 dB

Audio Distortion: Less Than 5%

Receiver

Sensitivity: Less Than -123 dBm @ 25 kHz

Selectivity: Less Than -65 dB

Intermodulation: Less Than -55 dB

Rated Audio Output Power: 750 mW

Audio Distortion: Less Than 5%
