Detection method: Vibration-type static sensor
Display range: ±0.01 - 1kV
Analog output: 0 - ±100mV
Measurement precision: Within ±10%
Charged voltage: Approx. ±1kV
Charge plate: Dimensions: 75 mm × 25 mm; electrostatic capacity: Approx. 8 pF
Power supply: 2 AAA alkaline batteries (3 hours or more of continuous operation)
Dimensions: 130×70×25mm
Mass: Approx.170 g (including batteries)
Options: KSD-REC / Analog output cable(1000mm)

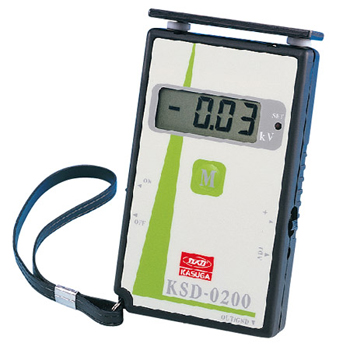

This easy-to-handle static eliminator monitor is used for measuring the static elimination performance and ion balance of an ionizer (static eliminator).
Dirt on or around the discharging electrode needle of an ionizer or abrasion of the needle results in degraded static elimination performance or loss of ion balance. The same problems affect fan-type ionizers when the filter is dirty. This static eliminator monitor enables management of an ionizer by measuring its static elimination performance and ion balance.
| Model | KSD-0200 |
|---|---|
| Detection method | Vibration-type static sensor |
| Display range | ±0.01 - 1kV |
| Analog output | 0 - ±100mV |
| Measurement precision | Within ±10% |
| Charged voltage | Approx. ±1kV |
| Charge plate | Dimensions: 75 mm × 25 mm; electrostatic capacity: Approx. 8 pF |
| Operating environment | Temperature: 0°C-40°C, Humidity: 65% RH or below (no condensation) |
| Power supply | 2 AAA alkaline batteries (3 hours or more of continuous operation) |
| Dimensions | 130×70×25mm |
| Mass | Approx. 170 g (including batteries) |
| Options | KSD-REC / Analog output cable(1000mm) |
