KASUGA IOH-02 Overhead ionizer | EMIN.COM.LA

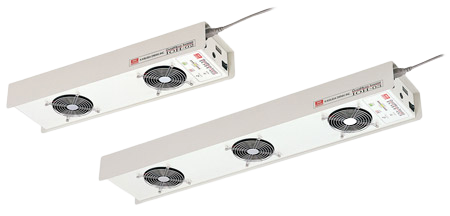

KASUGA IOH-02 Overhead ionizer

Name: KASUGA IOH-02 Overhead ionizer
Brand: KASUGA

ຜູ້ຜະລິດKASUGA

ModelIOH-02

ຕິດຕໍ່

ຈຳນວນ

ການຊຳລະເງິນທີ່ປອດໄພ

ການຮັບປະກັນຄຸນນະພາບ

ປ່ຽນ ແລະ ສົ່ງຄືນງ່າຍ

ມີບໍລິການຈັດສົ່ງ

Model: IOH-02
Manufacture: KASUGA
Warranty: 12 Months
Ion generation method: DC corona discharge
Discharging electrode needle: Special alloy with low dust emission
Method of ion balance control : Control by D.I.C. circuit
Ion balance* Within ±10V (at time of factory shipment), permits fine tuning
Fan speed: Variable (non-step)
Maximum Air volume: 3.0 m3/min x 2 fan
Maximum airflow speed*: 0.70m/sec
-Alarm display:
+ Alarm lamp blinking: Cleaning alarm (control limit), high-voltage alarm
+ Alarm lamp staying lit: High-voltage stop (when voltage exceeds the control range or the high-voltage alarm continues)
- Alarm output (External output)
+ ionization output: During ionization (high-voltage output)
+ Alarm output: While alarm lamp blinks or stays lit
External input: Permits feedback input of electrostatic potential or ion balance
Amount of ozone production*: 0.02 ppm or less
Operating environment: Temperature: 0°C-40°C, Humidity: 80% RH or below (no condensation)
Input condition: AC100-240V (permits series connection of up to 10 units)
Power cable: Approx. 1.8 m (power cable with grounding electrode)
Power consumption: 32VA
Mass: Approx. 3.6kg

Control by the new D.I.C. circuit* not only maintains a certain ion balance but also ensures a consistent amount of ion generation. This allows ionization in the optimal condition at all times, with no degradation of ionization performance. Frequency of maintenance can thus be significantly reduced.
The rear fan guard can easily be removed just by sliding it, which allows easy access to the area around the electrodes, ensuring easy maintenance.
When the ionizer is turned on, it displays the remaining interval before the next maintenance.
Electrode needles made of a special alloy with low dust emission allow use of the unit in a clean-room environment.

When the unit is turned on, it displays the remaining interval before the next maintenance by the number of LED lamps lit.

*The D.I.C. (Double Ion Control) circuit maintains the optimal condition for static elimination by simultaneously controlling the ion balance and amount of ion generation.

Specifications

Model		IOH-03	IOH-02
Ion generation method		DC corona discharge
Discharging electrode needle		Special alloy with low dust emission
Method of ion balance control		Control by D.I.C. circuit
Ion balance^*		Within ±10V (at time of factory shipment), permits fine tuning
Fan speed		Variable (non-step)
Maximum air volume		3.0 m³/min × 3 fans or 2 fans
Maximum airflow speed^*		0.87m/sec	0.70m/sec
Alarm display	Alarm lamp blinking	Cleaning alarm (control limit), high-voltage alarm
Alarm display	Alarm lamp staying lit	High-voltage stop (when voltage exceeds the control range or the high-voltage alarm continues)
Alarm output (External output)	ionization output	During ionization (high-voltage output)
Alarm output (External output)	Alarm output	While alarm lamp blinks or stays lit
External input		Permits feedback input of electrostatic potential or ion balance
Amount of ozone production^*		0.02 ppm or less
Operating environment		Temperature: 0°C-40°C, Humidity: 80% RH or below (no condensation)
Input condition		AC100-240V (permits series connection of up to 10 units)
Power cable		Approx. 1.8 m (power cable with grounding electrode)
Power consumption		54VA	32VA
Mass		Approx. 5.0kg	Approx. 3.6kg
